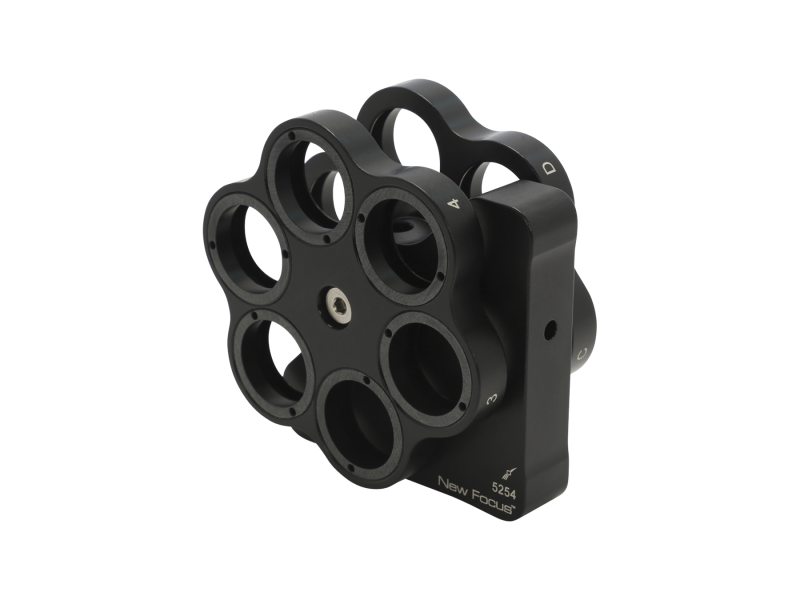

Indexed Filter Wheel, Dual Six Position, 1.0 in. Diameter
The 5254NF Dual Filter Wheel uses threaded Delrin® inserts to give you the flexibility to hold and easily swap any collection of 1.0 in. (25.4 mm) diameter filters or optics. The dual six position filter wheels are mechanically indexed for precise positioning when switching from filter to filter.
Resources & Downloads
2D Product Drawings
5254b-Drawing(135.6 kB, PDF)
