Cold Mirror, 50.8 x 50.8 mm, 45° AOI, 780-2500 nm Transmittance

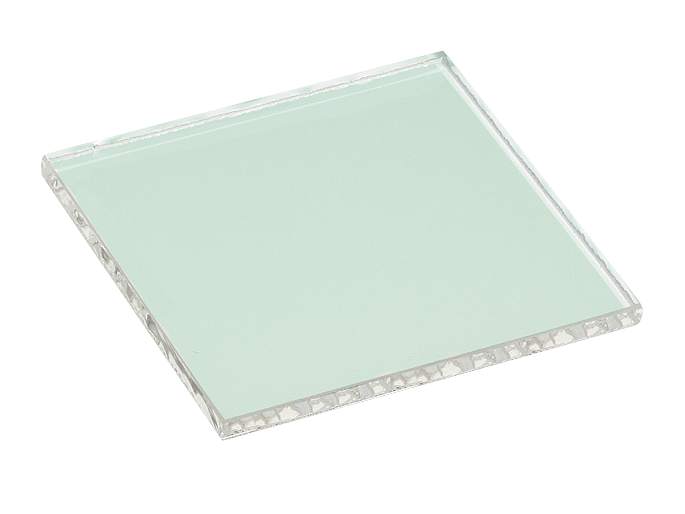

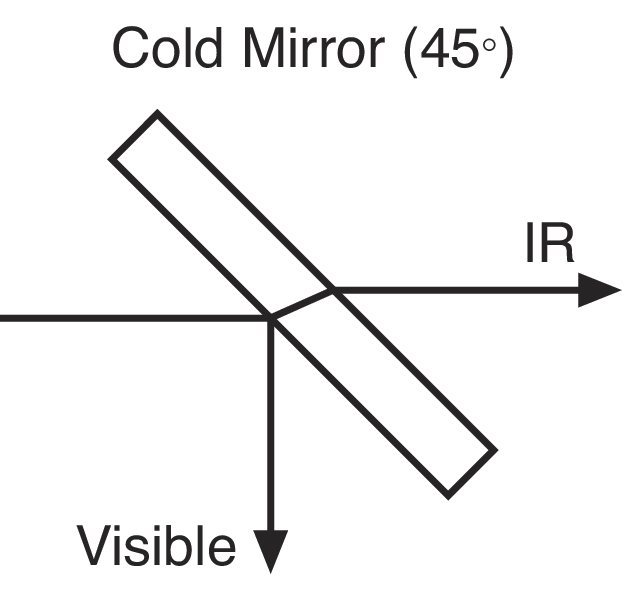

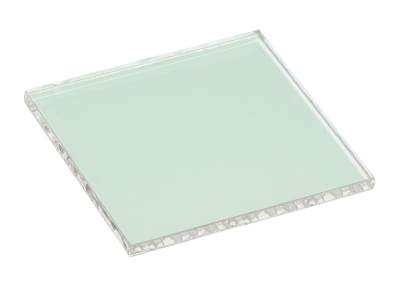

The 20CMS-45 Cold Mirror is a 50.8 x 50.8 mm square 45° mirror used as a heat control filter. Our cold mirrors are heat-transmitting longpass filters designed to reflect 400-700 nm visible wavelengths while transmitting 780-2500 nm near-infrared wavelengths. These filters can be used to remove heat from an optical system.

Specifications

Technical Specs

Type
Cold Mirror
Optic Size
50.8 x 50.8 mm
Transmittance Range
780-2500 nm

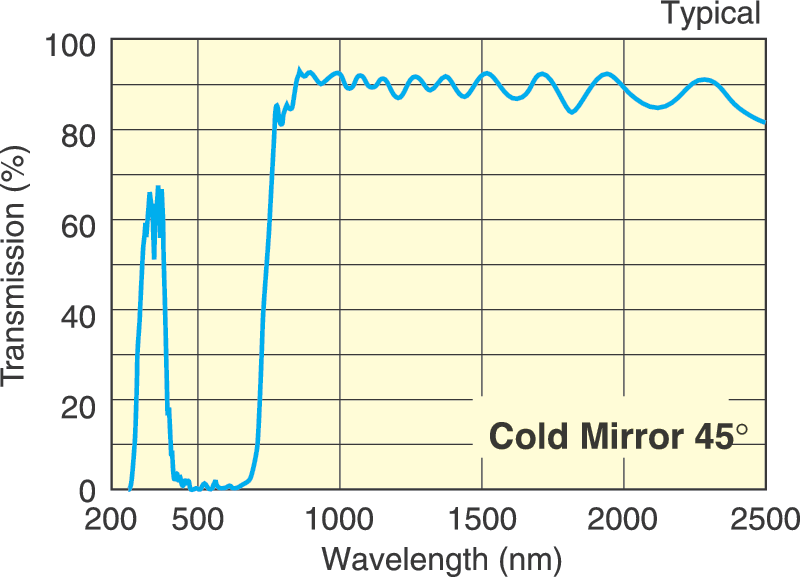

Transmission
Tavg≥85% 780-850 nm; Tavg≥80% 850-2500 nm
Reflectance Band
400-700 nm
Reflectance
Ravg≥95%
Angle of Incidence
45° ±5°
Material
Borofloat® borosilicate float glass
Surface Quality
80-50 scratch-dig

Surface Flatness
6–8λ per 25.4 mm at 546.1 nm over the clear aperture
Thickness
3.3 mm
Thickness Tolerance
±0.2 mm
Size Tolerance
±0.4 mm
Clear Aperture
≥central 90% of dimensions
Temperature Range
-100 to 500°C
Cleaning
See How to Clean Optics

Type
Cold Mirror
Optic Size
50.8 x 50.8 mm
Transmittance Range
780-2500 nm
Transmission
Tavg≥85% 780-850 nm; Tavg≥80% 850-2500 nm
Reflectance Band
400-700 nm
Reflectance
Ravg≥95%
Angle of Incidence
45° ±5°
Material
Borofloat® borosilicate float glass
Surface Quality
80-50 scratch-dig

Surface Flatness
6–8λ per 25.4 mm at 546.1 nm over the clear aperture
Thickness
3.3 mm
Thickness Tolerance
±0.2 mm
Size Tolerance
±0.4 mm
Clear Aperture
≥central 90% of dimensions
Temperature Range
-100 to 500°C
Cleaning
See How to Clean Optics

Resources & Downloads

Other

20CMS-45 RoHS Certificate(264.3 kB, PDF)
20CMS-45_ROHS2-2021.pdf(280.2 kB, PDF)

2D Product Drawings

20HMS-0 and 20CMS-45 Drawing(84 kB, PDF)
