Cold Mirror, 25.4 mm, 45° AOI, 780-2500 nm Transmittance

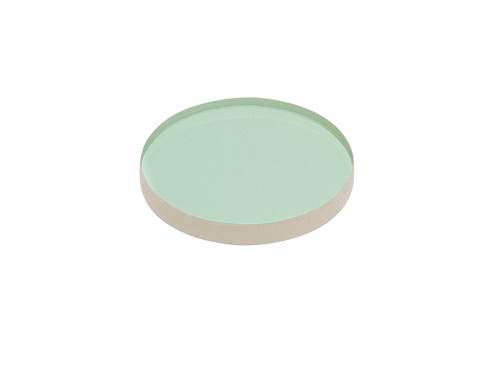

25.4 mm diameter cold mirror and longpass filter

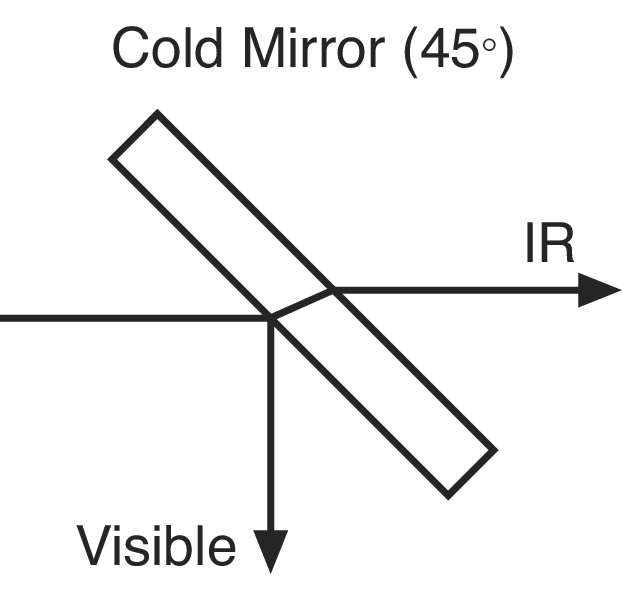

The 10CMR-45 Cold Mirror is a 25.4 mm diameter 45° mirror used as a heat control filter. . Our cold mirrors are heat-transmitting filters designed to reflect 400-700 nm visible wavelengths while transmitting 780-2500 nm near-infrared wavelengths. These filters can be used to remove heat from an optical system.

Specifications

Technical Specs

Type
Cold Mirror
Optic Size
Ø25.4 mm
Transmittance Range
780-2500 nm

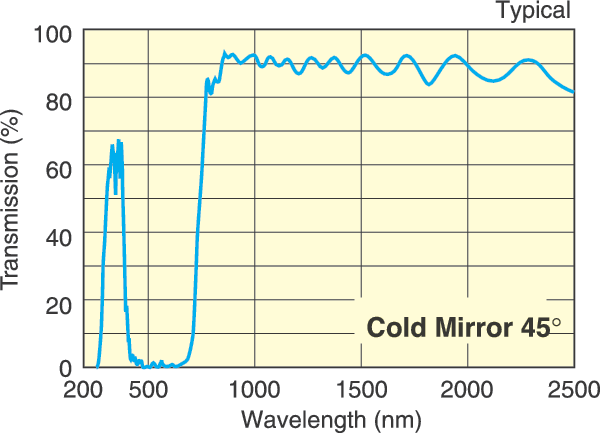

Transmission
Tavg≥85% 780-1250 nm; Tavg≥80% 850-2500 nm
Reflectance Band
400-700 nm
Reflectance
Ravg≥95%
Angle of Incidence
45° ±5°
Material
Borofloat® borosilicate float glass
Surface Quality
80-50 scratch-dig

Surface Flatness
6–8λ per 25.4 mm at 546.1 nm over the clear aperture
Thickness
3.3 mm
Thickness Tolerance
±0.2 mm
Size Tolerance
±0.4 mm
Clear Aperture
≥central 90% of dimensions
Temperature Range
-100 to 500°C
Cleaning
See How to Clean Optics

Type
Cold Mirror
Optic Size
Ø25.4 mm
Transmittance Range
780-2500 nm
Transmission
Tavg≥85% 780-1250 nm; Tavg≥80% 850-2500 nm
Reflectance Band
400-700 nm
Reflectance
Ravg≥95%
Angle of Incidence
45° ±5°
Material
Borofloat® borosilicate float glass
Surface Quality
80-50 scratch-dig

Surface Flatness
6–8λ per 25.4 mm at 546.1 nm over the clear aperture
Thickness
3.3 mm
Thickness Tolerance
±0.2 mm
Size Tolerance
±0.4 mm
Clear Aperture
≥central 90% of dimensions
Temperature Range
-100 to 500°C
Cleaning
See How to Clean Optics
