Glan-Laser Calcite Polarizer, 25.4 mm Diameter, Uncoated

Model: 10GL08

$1,254

In Stock

Compare

Product Series Overview

Glan-Laser Calcite Polarizers

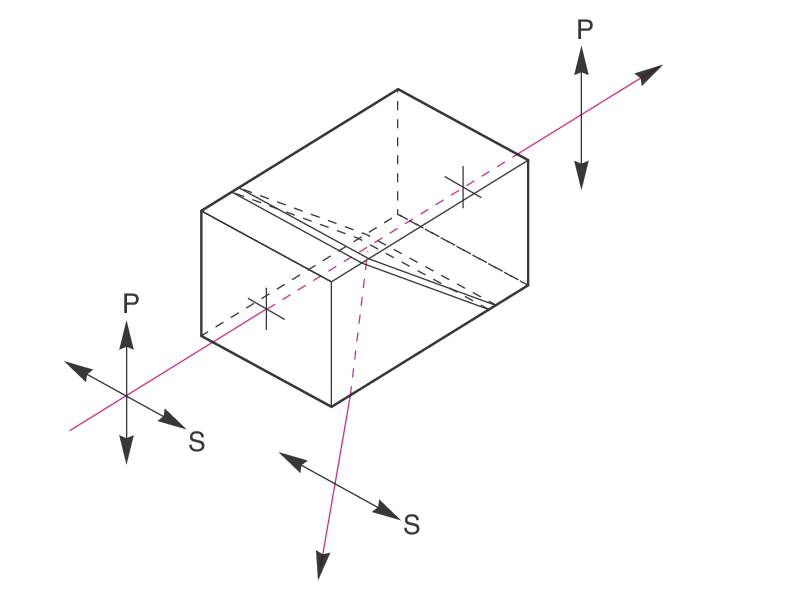

The 10GL08 Glan-Laser Calcite Polarizer is designed for demanding applications requiring extreme polarization purity and high resistance to laser damage. Glan-laser polarizers are air-spaced, select-grade calcite prism pairs with the prism interface angles optimized for minimum insertion loss. Two escape ports provide an exit for the rejected polarization component, avoiding dangerous absorption of laser power by the polarizer housing. This allows this polarizer to be used in Q-switched laser cavities and other multiple pass applications.

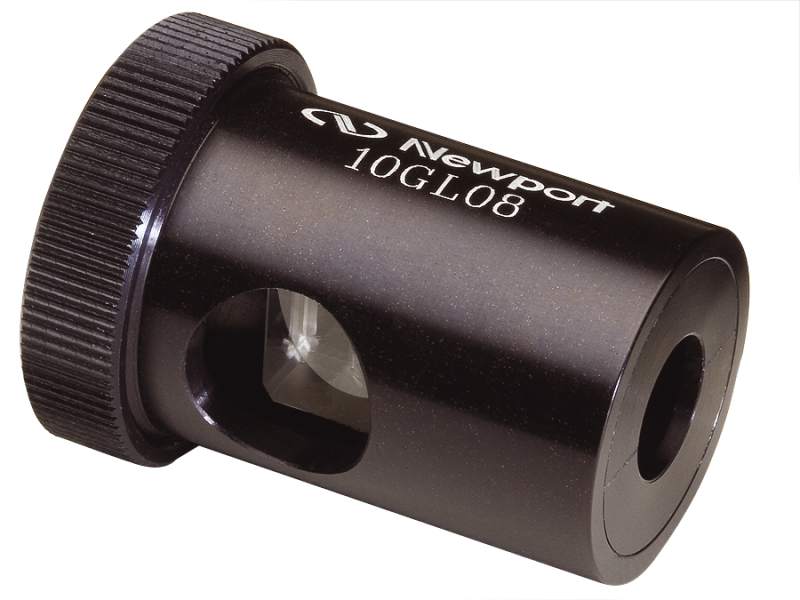

This polarizer is uncoated. The housing has been designed to mount into our standard 1 inch (25.4 mm) optic holders, rotary stages, and precision positioning components. The output polarization axis is clearly marked on the housing.

**Calcite polarizers are made with natural crystals, and even in the best grade of calcite, there are embedded flaws which can not be corrected. The laser damage threshold value below was given for reference only and can not be guaranteed. **

Specifications

Technical Specs

Diameter
25.4 mm
Wavelength Range
350-2300 nm
Material
Optical Grade Calcite
Extinction Ratio
100000:1
Damage Threshold
500 W/cm² CW, 4 J/cm² with 10 nsec pulses, typical
Surface Quality
20-10 scratch dig, 80-50 scratch-dig for exit apertures scratch-dig
Clear Aperture
10.0 mm
Diameter Tolerance
±0.25 mm

Transmitted Beam Deviation
<3 arc min
Reflected Beam Deviation
67°
Transmission
T_p ~ 40-45% at 350 nm,
70-75 at 400 nm,
86-88% at 500 nm and longer wavelengths
Acceptance Angle
4° full angle at 441.6 nm to 1° full angle at 1064 nm
Wavefront Distortion
≤λ/4 at 632.8 nm over the full aperture
Maximum Temperature
90°C

Diameter
25.4 mm
Wavelength Range
350-2300 nm
Material
Optical Grade Calcite
Extinction Ratio
100000:1
Damage Threshold
500 W/cm² CW, 4 J/cm² with 10 nsec pulses, typical
Surface Quality
20-10 scratch dig, 80-50 scratch-dig for exit apertures scratch-dig
Clear Aperture
10.0 mm
Diameter Tolerance
±0.25 mm

Transmitted Beam Deviation
<3 arc min
Reflected Beam Deviation
67°
Transmission
T_p ~ 40-45% at 350 nm,
70-75 at 400 nm,
86-88% at 500 nm and longer wavelengths
Acceptance Angle
4° full angle at 441.6 nm to 1° full angle at 1064 nm
Wavefront Distortion
≤λ/4 at 632.8 nm over the full aperture
Maximum Temperature
90°C

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

GLANLASE-S(72 kB, PDF)

Other

10GL08 RoHS Certificate(263.8 kB, PDF)
10GL08_ROHS2-2021.pdf(279.4 kB, PDF)
