Overview

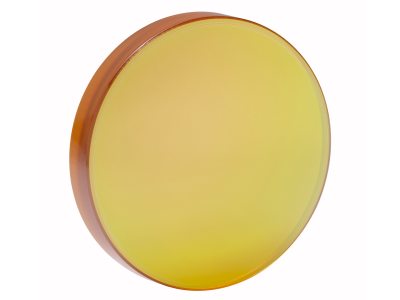

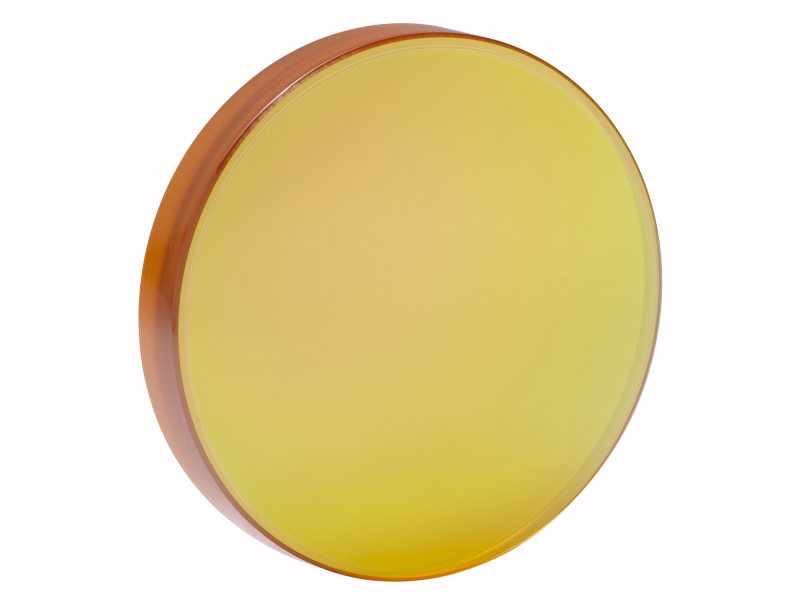

These Duralens™ coated ZnSe plano-convex lenses are designed for use as focusing lenses for high power CO₂ lasers. They are manufactured by automated CNC technology and designed for highest durability and accuracy, assuring complete uniformity, repeatability and consistency.

Compatible with all major CO₂ laser systems in the market
Approved and used by leading OEMs
Designed for high durability and accuracy
Manufactured according to the highest precision specifications

See All Features

Products

Compare	Model	Compatibility	rankScore	Diameter	Focal Length	Edge Thickness (T_e)	OEM Compatibility	Availability	Price	Brand
61001-117 Plano-Convex Lens, ZnSe, 38.1 mm, 5.13 in. Focal Length, 7.1 mm Edge, DURALENS $325 In Stock	61001-117 Plano-Convex Lens, ZnSe, 38.1 mm, 5.13 in. Focal Length, 7.1 mm Edge, DURALENS	UNIVERSAL	1.0	38.1 mm	5.13 in.	7.1 mm	Cincinnati^®	In Stock	$325	Newport
61002-117 Plano-Convex Lens, ZnSe, 38.1 mm, 7.63 in. Focal Length, 8 mm Edge, DURALENS $325 In Stock	61002-117 Plano-Convex Lens, ZnSe, 38.1 mm, 7.63 in. Focal Length, 8 mm Edge, DURALENS	UNIVERSAL	1.0	38.1 mm	7.63 in.	8.0 mm	Cincinnati^®	In Stock	$325	Newport
61019-117 Plano-Convex Lens, ZnSe, 50.8 mm, 5 in. Focal Length, 9.65 mm Edge, DURALENS $540 In Stock	61019-117 Plano-Convex Lens, ZnSe, 50.8 mm, 5 in. Focal Length, 9.65 mm Edge, DURALENS	UNIVERSAL	1.0	50.8 mm	5.0 in.	9.65 mm	Mazak^®	In Stock	$540	Newport
61405-117 Plano-Convex Lens, ZnSe, 50.8 mm, 7.5 in. Focal Length, 9.65 mm Edge, DURALENS $540 3 Weeks	61405-117 Plano-Convex Lens, ZnSe, 50.8 mm, 7.5 in. Focal Length, 9.65 mm Edge, DURALENS	UNIVERSAL	1.0	50.8 mm	7.5 in.	9.65 mm	Mazak^®	3 Weeks	$540	Newport
62649-117 Plano-Convex Lens, ZnSe, 38.1 mm, 7.5 in. Focal Length, 7.6 mm Edge, DURALENS $325 In Stock	62649-117 Plano-Convex Lens, ZnSe, 38.1 mm, 7.5 in. Focal Length, 7.6 mm Edge, DURALENS	UNIVERSAL	1.0	38.1 mm	7.5 in.	7.6 mm	Amada^®	In Stock	$325	Newport
62670-117 Plano-Convex Lens, ZnSe, 38.1 mm, 5 in. FL,, 7.6 mm Edge, DURALENS $325 In Stock	62670-117 Plano-Convex Lens, ZnSe, 38.1 mm, 5 in. FL,, 7.6 mm Edge, DURALENS	UNIVERSAL	1.0	38.1 mm	5.0 in.	7.6 mm	Amada^®	In Stock	$325	Newport
62728-117 Plano-Convex Lens, ZnSe, 50.8 mm, 5 in. Focal Length, 7.9 mm Edge, DURALENS $500 Contact Us	62728-117 Plano-Convex Lens, ZnSe, 50.8 mm, 5 in. Focal Length, 7.9 mm Edge, DURALENS	UNIVERSAL	1.0	50.8 mm	5.0 in.	7.9 mm	Mitsubishi^®	Contact Us	$500	Newport
62729-117 Plano-Convex Lens, ZnSe, 50.8 mm, 7.5 in. FL,, 7.9 mm Edge, DURALENS $500 In Stock	62729-117 Plano-Convex Lens, ZnSe, 50.8 mm, 7.5 in. FL,, 7.9 mm Edge, DURALENS	UNIVERSAL	1.0	50.8 mm	7.5 in.	7.9 mm	Mitsubishi^®	In Stock	$500	Newport

Show All

Specifications

Lens Shape

Plano-Convex
Lens Material

Zinc Selenide (ZnSe)
Coating Type

DURALENS™
Absorption

<0.20%
Transmission

>99.3%
Reflectivity

<0.2%

Surface Accuracy, Irregularity

0.5 Fringe @ 0.633 µm
Surface Figure

2 Fringes @ 0.633 µm
Diameter Tolerance

+0.0/-0.1 mm
Edge Thickness Tolerance

±0.1 mm
Clear Aperture

≥90%

Specifications

Lens Shape

Plano-Convex
Lens Material

Zinc Selenide (ZnSe)
Coating Type

DURALENS™
Absorption

<0.20%
Transmission

>99.3%
Reflectivity

<0.2%

Surface Accuracy, Irregularity

0.5 Fringe @ 0.633 µm
Surface Figure

2 Fringes @ 0.633 µm
Diameter Tolerance

+0.0/-0.1 mm
Edge Thickness Tolerance

±0.1 mm
Clear Aperture

≥90%
