Visible Antireflection Coated Molded Glass Aspheric Lenses

These 350-700 nm antireflection coated Geltech® molded glass aspheric lenses are a very economic choice for collimating or focusing light at high magnification. They are made from low dispersion materials and are suitable for applications include fiber coupling, collimating laser diodes, and laser scanning.

350-700 nm visible antireflection coating
Aspheric surface reduces spherical aberration
Economical choice for collimating or focusing light

See All Features

Show Filters:

Showing 10 of 18 total products

Compatibility:

Description	Compatibility	Lens Shape	Diameter	Effective Focal Length (EFL)	Numerical Aperture	Avail.	Price
KGA022-AAspheric Lens, Molded Glass, 5.42 mm, 4.47 mm FL, 0.47 NA, 350-700 nm	UNIVERSAL	Bi-Convex Aspheric	5.42 mm	4.47 mm	0.47	In Stock	$136
KGA110-AAspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 0.40 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	7.2 mm	6.24 mm	0.4	In Stock	$122
KGA150-AAspheric Lens, Molded Glass, 3.00 mm, 2.00 mm FL, 0.47 NA, 350-700 nm	UNIVERSAL	Bi-Convex Aspheric	3.0 mm	2.00 mm	0.5	In Stock	$127
KGA160-AAspheric Lens, Molded Glass, 4.00 mm, 2.72 mm FL, 0.55 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	4.0 mm	2.72 mm	0.55	In Stock	$107
KGA220-AAspheric Lens, Molded Glass, 7.20 mm, 11.0 mm FL, 0.25 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	7.2 mm	11.0 mm	0.3	In Stock	$107
KGA230-AAspheric Lens, Molded Glass, 6.325 mm, 4.51 mm FL, 0.55 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	6.325 mm	4.5 mm	0.6	In Stock	$116
KGA240-AAspheric Lens, Molded Glass, 9.94 mm, 8.00 mm FL, 0.50 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	9.936 mm	8.0 mm	0.5	In Stock	$127
KGA260-AAspheric Lens, Molded Glass, 6.50 mm, 15.29 mm FL, 0.16 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	6.5 mm	15.29 mm	0.16	In Stock	$107
KGA280-AAspheric Lens, Molded Glass, 6.50 mm, 18.40 mm FL, 0.15 NA, 350-700 nm	UNIVERSAL	Plano-Convex Aspheric	6.5 mm	18.4 mm	0.15	In Stock	$107
KGA330-AAspheric Lens, Molded Glass, 6.325 mm, 3.10 mm FL, 0.68 NA, 350-700 nm	UNIVERSAL	Bi-Convex Aspheric	6.325 mm	3.10 mm	0.7	In Stock	$107

Show All

Mounting Options

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (T_e) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter	A-Line™ Lens Mounts	LT Series Lens Tubes	LP Series Lens Positioners	Optics Cage Plus Series
76.2 mm	()	N/A	N/A	N/A
50.8 mm	()			N/A
38.1 mm	()	LT20 lens tube with adapter	LP-2 lens positioner with adapter	N/A
25.4 mm	()
12.7 mm	()			N/A
6.35 mm	with adapter	LT05 lens tube with adapter	LP-05 lens positioner with adapter	N/A

For non-standard sizes not listed above, check out our variable size lens mounts.

Specifications

Lens Type
Molded Glass Aspheric

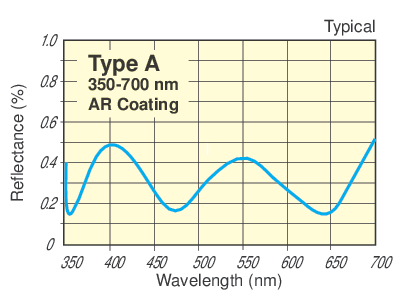

Antireflection Coating
350-700 nm

Coating Code
-A
Surface Quality
40-20 scratch-dig

Features

Advantage of Aspheric Lenses

In applications that require large acceptance angles, such as light gathering for illumination, spherical lenses are unsuitable due to spherical aberration, or the effect of refractive power of a spherical surface becoming greater with increasing aperture. Aspheric lenses maintain constant focal length or very high NA, avoiding the need for multiple elements to correct spherical aberration. This simplifies system design by reducing weight and component count. It also results in less transmission loss, and less ghosting due to having fewer surfaces. The primary drawback of aspheric lenses is off-axis performance is poor. This is not a problem for coupling to and from optical fibers or collimating light sources, but aspheric lenses are not usable over a wide field of view.

Molded Glass Aspheric Construction

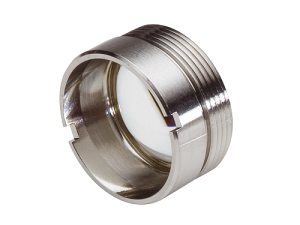

These Geltech lenses are made from Corning C0550 glass, which features low dispersion (Vd=50.40). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. Mounted versions with a 304 stainless steel holder are also available.

Visible Antireflection Coated Molded Glass Aspheric Lenses

Visible Antireflection Coated Molded Glass Aspheric Lenses

Mounting Options

Specifications

Features

Advantage of Aspheric Lenses

Molded Glass Aspheric Construction
