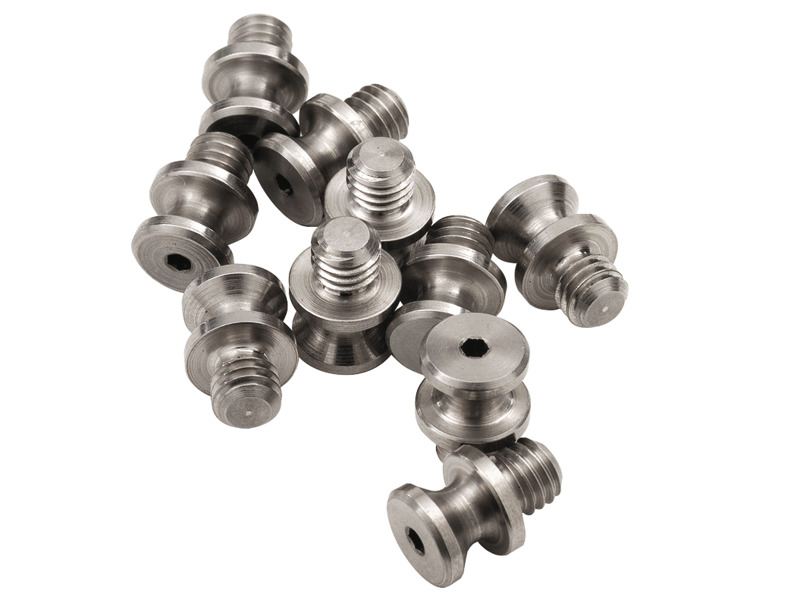

Linear Stage Joining Pegs

Linear stage joining pegs are used to join 460P and 460PD Series stages together for multi-axis and other configurations. They can also be used to quickly connect and remove posts.

Join linear stages for multi-axis configurations
Compatible with 460P Series single-row ball bearing and 460PD Series dovetail slide stages
Compatible with PS-1P peg post adapter
Compatible with SR-4P extension rod

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		PEG-10Joining Pegs, 460P Series, 1/4-20 Thread, Pack of 10	IMPERIAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$124
		M-PEG-10Joining Pegs, 460P Series, M6 Thread, Pack of 10	METRIC		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$124

Features

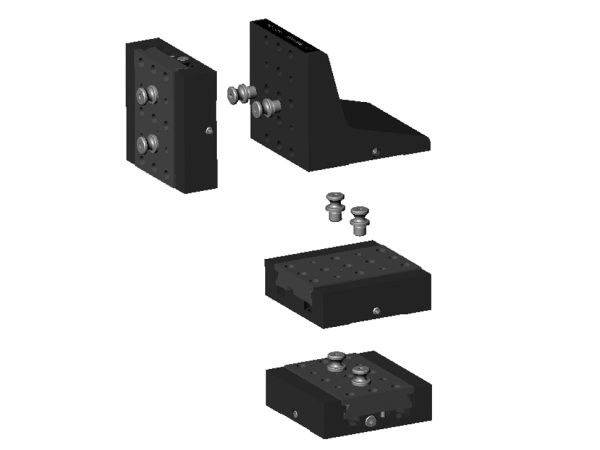

Mount Stages with Excellent Repeatability

The 460PD and 460P linear stages feature our patented peg joining system to construct multi-axis configurations easily. The tight toleranced fit of the peg into the stages results in their removal and replacement with excellent repeatability.

Install and Remove Posts Quickly

The peg adaptor post allows posts to be preciely installed and removed without changing its location in an optical setup – this system also allows quick mounting or removal of an optical breadboard plate. The special purpose extension rod also includes a peg fastener so that two SR-4P rods can be combined and aligned for extended travel.
