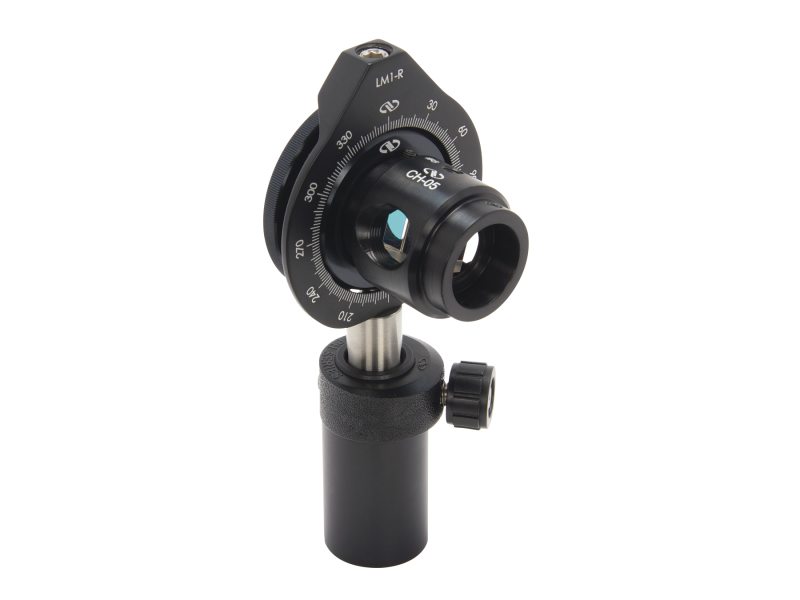

Our nested optic rotation mounts feature a graduated optic cell holder ring with a spring loaded detent that accepts optic rotation cells supporting various optic sizes. This versatile optical mounting system provides snap-in mounting for lenses and rotation for polarizers.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
LM1-R Optic Cell Rotation Mount, 2° Graduations, For LH1 Optic Cells |
In Stock
|
$54 |
|
|||
|
LM2-R Optic Cell Rotation Mount, 2° Graduations, For LH2 Optic Cells |
2 Weeks
|
$72 |
|
|||
|
LH1-0.25R Optic Holder Cell, 0.25 in. Diameter Optics, Requires LM1-R Mount |
In Stock
|
$35 |
|
|||
|
LH1-0.5R Optic Holder Cell, 0.5 in. Diameter Optics, Requires LM1-R Mount |
2 Weeks
|
$29 |
|
|||
|
LH1-1R Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount |
In Stock
|
$29 |
|
|||
|
LH2-1.5R Optic Holder Cell, 1.5 in. Diameter Optics, Requires LM2-R Mount |
In Stock
|
$48 |
|
|||
|
LH2-2R Optic Holder Cell, 2.0 in. Diameter Optics, Requires LM2-R Mount |
In Stock
|
$41 |
|

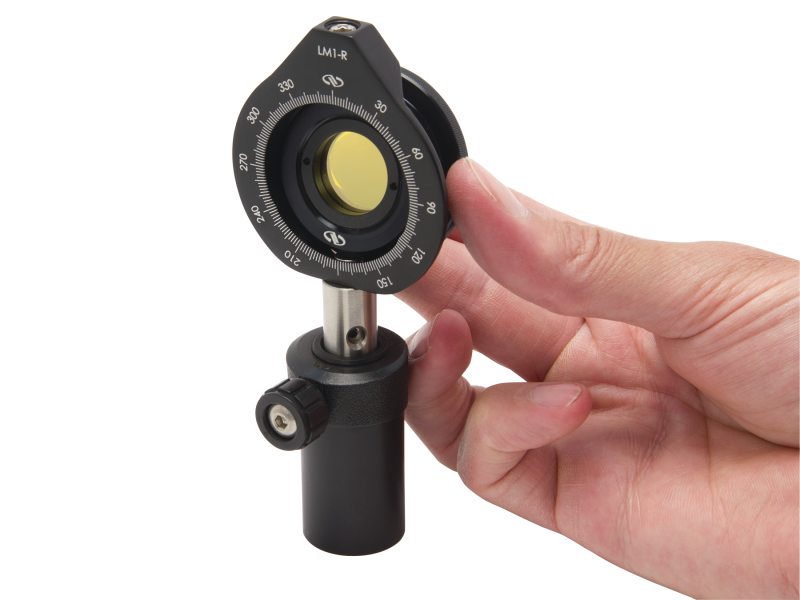

The spring loaded retainer on the LM series optic cell mount allows the LH series lens cells to be snapped in and out with ease. Additionally, polarization optics can be accurately rotated using graduations marked every 2°. The lens mounts can be post or pedestal mounted.

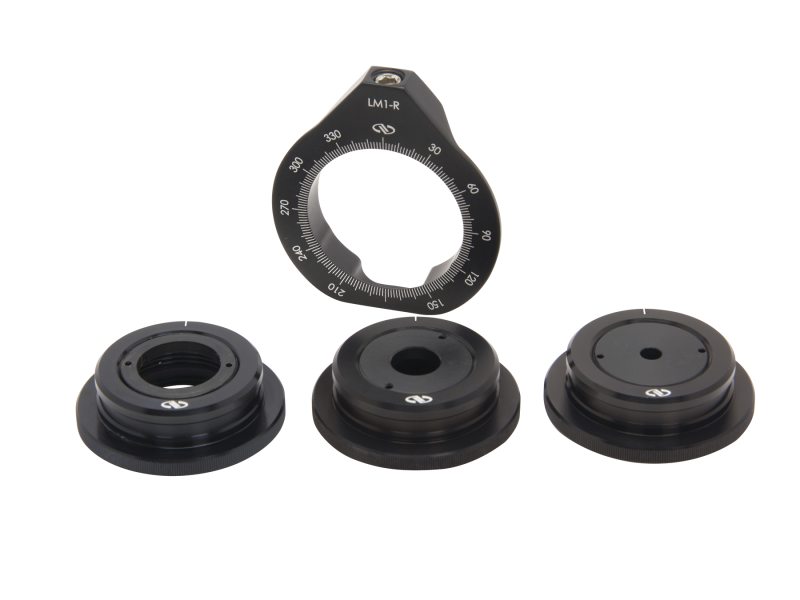

The nesting design of these lens holders keeps a constant optical axis regardless of lens cell size. LH1 optic holder cells are compatible with the LM1-R rotation mount, and LH2 optic holder cells are compatible with the LM2-R rotation mount.
Lenses are mounted in a cell with a Delrin retainer ring, protecting them from fingerprints and scratches.
The graduated markings on the lens cell holders allows for precise rotation of polarizing optics.
