TE Series Optical Table Enclosures

TE80 Series Table Enclosures are engineered to reduce the impact of air currents on table optics, improving image clarity and stability. By isolating optical setups, these enclosures also enable longer exposure times, decrease laser power requirements, and enhance overall performance.

Easily installed on existing Newport optical tables
Improves results by reducing air currents
Raises S/N ratio for optical data processing applications
Can be custom built to your specification

See All Features

Show Filters:

Showing 10 of 18 total products

Compatibility:

Description	Compatibility	Width	Length	Height	Avail.
TE80-36Optical Table Enclosure, 3x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	3 ft.	6 ft.	32.5 in.	Contact Us
TE80-46Optical Table Enclosure, 4x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	4 ft.	6 ft.	32.5 in.	Contact Us
TE80-56Optical Table Enclosure, 5x6 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	59.06 in.	6 ft.	32.5 in.	Contact Us
TE80-38Optical Table Enclosure, 3x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	3 ft.	8 ft.	32.5 in.	Contact Us
TE80-48Optical Table Enclosure, 4x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	4 ft.	8 ft.	32.5 in.	Contact Us
TE80-58Optical Table Enclosure, 5x8 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	59.06 in.	8 ft.	32.5 in.	Contact Us
TE80-310Optical Table Enclosure, 3x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	3 ft.	10 ft.	32.5 in.	Contact Us
TE80-410Optical Table Enclosure, 4x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	4 ft.	10 ft.	32.5 in.	Contact Us
TE80-510Optical Table Enclosure, 5x10 ft. x 32.5 in., 0.25 in. Clear Acrylic Sliding Panels	IMPERIAL	59.06 in.	10 ft.	32.5 in.	Contact Us
M-TE80-36Optical Table Enclosure, 900x1800 mm x 826 mm, 6.35 mm Clear Acrylic Sliding Panels	METRIC	900 mm	1800 mm	826 mm	Contact Us

Show All

Features

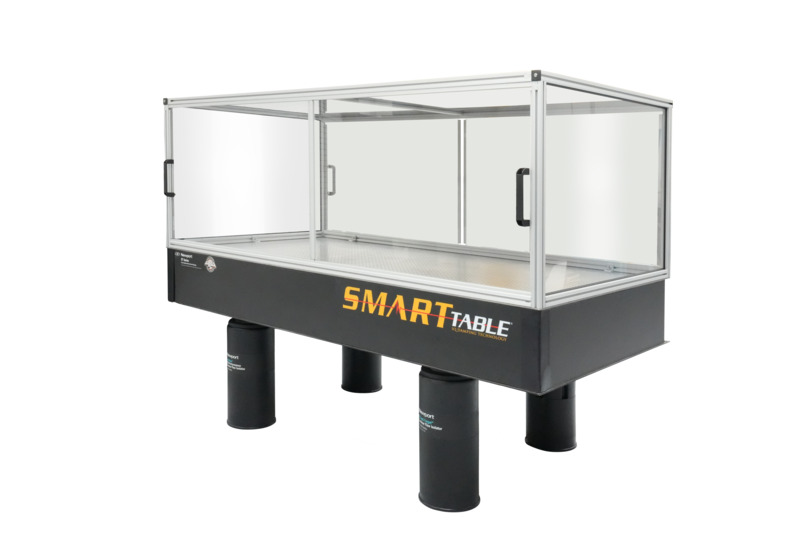

Table Mounted TE80 Enclosure

TE80 Series Table Enclosures come fully preassembled and feature a frame system made from 80/20 extrusion rails. They effectively minimize air currents from reaching the table optics, enhancing reconstruction brightness, allowing for longer exposures, and reducing the need for higher laser power. Each standard enclosure includes clear 1/4 in. (6.35 mm) acrylic sliding panels on both long sides and fixed panels on the short ends. The plastic handles equipped on both ends make it easy to slide the panels left or right from either side.
