Multimode Fiber Optic Couplers

Newport’s Fiber Optic Coupler family has been developed using fused fiber technology. These multimode fiber optic couplers allow bi-directional coupling and can be used to either split or combine signals.

1x2, 2x2, 1x4 and 1x8 multimode couplers
Low optical loss
Environmentally stable
Termination option available

See All Features

Show Filters:

Showing 10 of 11 total products

Compatibility:

Description	Compatibility	Type	Operating Wavelength	Coupling Ratio	Fiber Connector	Avail.	Price
F-CPL-M12131Optical Fiber Coupler, Multimode, 1 x 2, 10/90, 1310 nm	UNIVERSAL	1x2 Multimode Coupler	1310 nm	10%/90%	Bare Fiber	In Stock	$79
F-CPL-M12131-FCPCOptical Fiber Coupler, Multimode, 1 x 2, 10/90, 1310 nm, FC/PC	UNIVERSAL	1x2 Multimode Coupler	1310 nm	10%/90%	FC/PC	2 Weeks	$210
F-CPL-M12135Fiber Optic Coupler, Multimode, 1 x 2, 50/50, 1310 nm	UNIVERSAL	1x2 Multimode Coupler	1310 nm	50%/50%	Bare Fiber	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$100
F-CPL-M12135-FCPCMultimode Fiber Optic Coupler, 1 x 2, 50/50, 1310 nm, FC/PC	UNIVERSAL	1x2 Multimode Coupler	1310 nm	50%/50%	FC/PC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$210

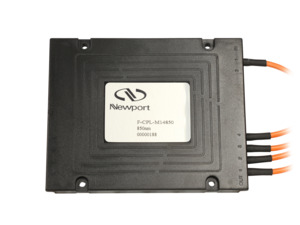

F-CPL-M14850Fiber Optic Coupler, Multimode, 1 x 4, 850 nm	UNIVERSAL	1x4 Multimode Coupler	850 nm		Bare Fiber	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$294
F-CPL-M14850-FCPCFiber Optic Coupler, Multimode, 1 x 4, 850 nm, FC/PC	UNIVERSAL	1x4 Multimode Coupler	850 nm		FC/PC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$430
F-CPL-M14130Fiber Optic Coupler, Multimode, 1 x 4, 1310 nm	UNIVERSAL	1x4 Multimode Coupler	1310 nm		Bare Fiber	Contact Us	$250
F-CPL-M14130-FCPCFiber Optic Coupler, Multimode, 1 x 4, 1310 nm, FC/PC	UNIVERSAL	1x4 Multimode Coupler	1310 nm		FC/PC	Contact Us	$480

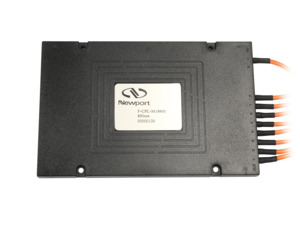

F-CPL-M18850Fiber Optic Coupler, Multimode, 1 x 8, 850 nm	UNIVERSAL	1x8 Multimode Coupler	850 nm		Bare Fiber	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$590
F-CPL-M18850-FCPCFiber Optic Coupler, Multimode, 1 x 8, 850 nm, FC/PC	UNIVERSAL	1x8 Multimode Coupler	850 nm		FC/PC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$865

Show All

Specifications

Fiber Type
Multimode
Typical Insertion Loss
50/50 couplers: 3.9 dB
10/90 couplers: 11.3/1.1 dB
1x4 couplers: 7.5 dB
1x8 couplers: 11.5 dB
Return Loss
1x2 and 2x2 couplers: 40 dB
Maximum Optical Power
2 W

Excess Loss, Maximum
1x2 and 2x2 couplers: 0.7 dB
Operating Humidity
90-95%
Uniformity
50/50 couplers: 0.5 dB
1x4 couplers: 0.7 dB
1x8 couplers: 1.3 dB

Features

Low Insertion Loss over Large Wavelength Range with Many Options Available

Our Multimode Fiber Optic Couplers come standard with 62.5/125 µm fiber, with low insertion loss and a broad operating wavelength range from 800 to 1600 nm. The 1x2 and 2x2 couplers are offered in both 50/50 (3 dB) and 10/90 coupling ratios. 1x4 and 1x8 port configurations are also available.

Rugged Housing and Cabling with Pigtail or FC/UPC Connection Available

All the couplers feature a fully ruggedized black plastic housing with 1 m long, 3 mm PVC covered pigtails. All standard models come non-terminated or with FC/UPC connectors.

Advanced Manufacturing Methods

Newport employs advanced manufacturing methods and extensive environmental testing to ensure that these products are suitable for applications in telecommunications, CATV, aerospace, defense, and R&D.
