Monochromator and Spectrograph Mounting Accessories

The ability to mount a monochromator or spectrograph to an optical table simplifies setup and alignment of the optical system. The mounting plate also helps ensure consistent results over time, as the instrument cannot be accidentally moved out of position.

Secure Instruments to Optical Tables
Conveniently Attach Light Sources
Available for Popular Oriel^® Monochromators and Spectrographs

See All Features

Show Filters:

Showing 10 of 10 total products

Compatibility:

Description	Compatibility	Avail.	Price
74006Mounting Plate, Cornerstone 130B Monochromator	UNIVERSAL	4 Weeks	$210
74017Mounting Kit, Cornerstone 130B Monochromator to Research Lamp Housing	UNIVERSAL	6 Weeks	$1,870
74104Mounting Kit, Cornerstone 260 Monochromator to Research Lamp Housing	UNIVERSAL	6 Weeks	$1,045
74104BMounting Kit, Cornerstone 260B Monochromator to Research Lamp Housing	UNIVERSAL	6 Weeks	$1,510
74105Mounting Plate, Cornerstone 260 Monochromator or MS260i Spectrograph	UNIVERSAL	In Stock	$260
74105BMounting Plate, Cornerstone 260B Monochromator	UNIVERSAL	6 Weeks	$955
77387Mounting Kit, 77250 and 77250B Monochromators, Imperial	UNIVERSAL	In Stock	$340
APEX2-CS1-KITMounting Kit, APEX2 Illuminator to CS130B Monochromator	UNIVERSAL	5 Weeks	$1,080
APEX2-CS2-KITMounting Kit, APEX2 Illuminator to CS260 Monochromator	UNIVERSAL	Contact Us	$1,170
APEX2-MS1-KITMounting Kit, APEX2 Illuminator to MS257 Monochromator	UNIVERSAL	Contact Us	$1,085

Features

Secure Instruments to Optical Tables

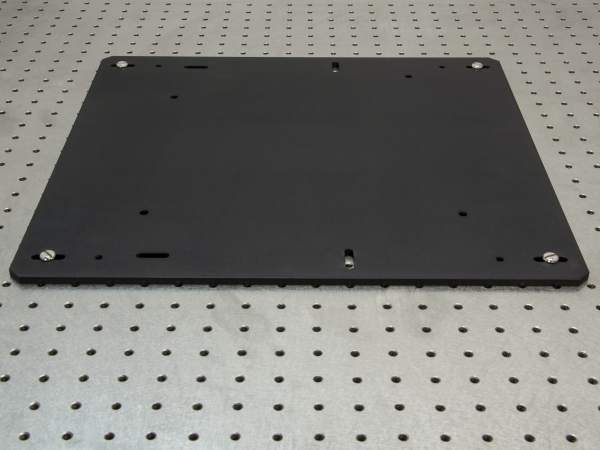

Oriel monochromators and spectrographs include threaded holes in the base of each instrument, allowing them to be secured to a mounting plate or to be rod mounted. The use of a mounting plate offers the greatest security in ensuring the instrument does not move out of place. Easily maintain a level orientation for your instrument, even with larger models such as the MS257 monochromator and imaging spectrograph. Mounting hardware slots are present on each baseplate that line up with the hole pattern on the optical table.

Conveniently Attach Light Sources

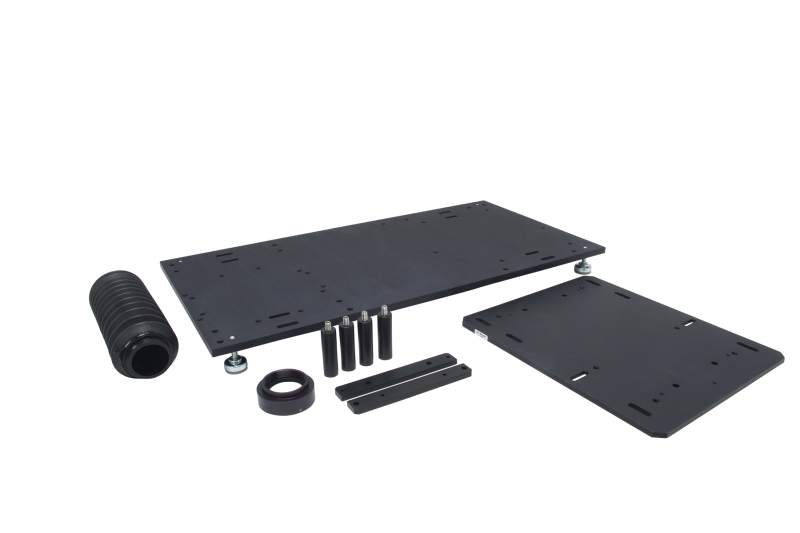

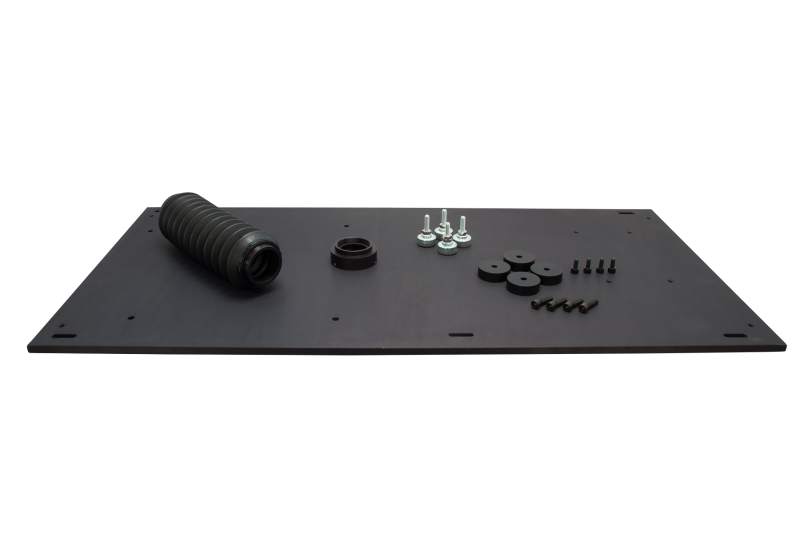

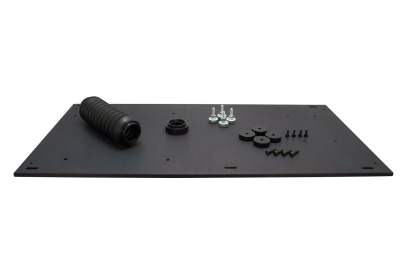

Mounting kits feature a larger area than the mounting plates to allow securing of a light source to the same base plate as the monochromator or spectrograph. These kits are compatible with Oriel Research Lamp Housings using 50 to 250 watt lamps. They include the base plate, a flexible light shield, a 1.5-in. diameter focusing lens and lens holder. All the hardware required to mount the lamp housing and instrument to the base plate is provided. Four adjustable leveling feet are included and may be used as an alternative to direct table mounting for easier portability.

Available for Popular Oriel Monochromators and Spectrographs

Mounting accessories are available for all Oriel monochromators and spectrographs, with the exception of the MS125 spectrograph. This model is small and lightweight, allowing it to be easily rod mounted.
