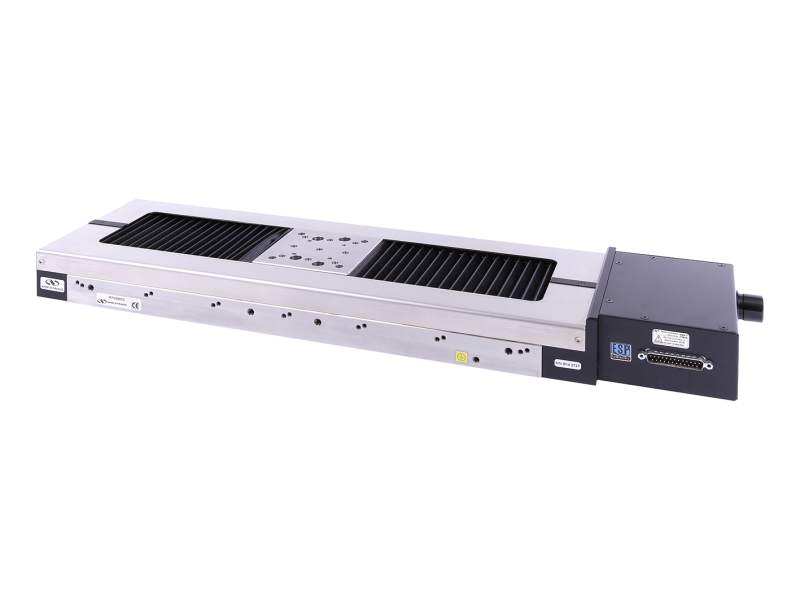

MTN Series High Load Capacity Steel DC Motor Linear Translation Stages

MTN linear stages are durable, all-steel construction positioners with exceptional load capacity, stiffness and thermal stability. They are designed for applicatons that require moving heavy loads with sub-micron precision over 100-, 200- or 300-mm travel ranges. These stages feature closed-loop DC or brushless DC motor drive systems, making them ideal for applications that need faster speeds or higher repeatability.

100 kg load and high axial load capacity up to 200 N
All steel construction offers high stiffness and thermal stability
Backlash-compensated, diamond-corrected leadscrew produces accurate linear motion, even for vertical applications
Plug and Play - ESP compatible

See All Features

Description	Compatibility	Travel Range	Avail.	Price
MTN100CCMotorized Linear Stage, Steel, DC Motor, 100 mm Travel, M4 and M6	UNIVERSAL	100 mm	In Stock	$11,985

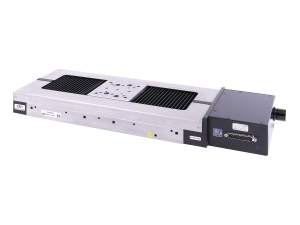

MTN200CCMotorized Linear Stage, Steel, DC Motor, 200 mm Travel, M4 and M6	UNIVERSAL	200 mm	5 Weeks	$12,475

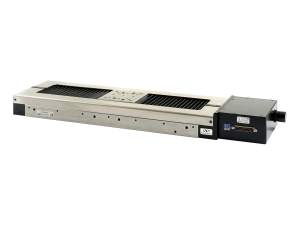

MTN300CCMotorized Linear Stage, Steel, DC Motor, 300 mm Travel, M4 and M6	UNIVERSAL	300 mm	In Stock	$13,164

Notes:

Brushless DC Motor and Stepper Motor versions are also available.

Compatible Controllers

Compatible motion controllers for the MTN-CC DC motor-driven stages are:

XPS-RLD Motion Controller ( or Axis): Requires an Driver Module.
XPS-D Motion Controller (, , or Axis): Requires an Driver Module.
ESP302 Motion Controller (, , or Axis): Plug and Play compatible with ESP302 Motion Controller.

Specifications

Models
Travel Range	100 mm	200 mm	300 mm
Maximum Speed	100 mm/s	100 mm/s	100 mm/s
Minimum Incremental Motion	600 nm	600 nm	600 nm
Centered Load Capacity	1000 N	1000 N	1000 N
Axial Load Capacity (+Cx)	200 N	200 N	200 N
Inverse Axial Load Capacity (-Cx)	-21 N	-21 N	-21 N
Accuracy, Typical	±1.5 µm	±2.0 µm	±2.5 µm
Accuracy, Guaranteed	±2.5 µm	±2.5 µm	±3.0 µm
Uni-directional Repeatability, Typical	±0.30 µm	±0.50 µm	±0.50 µm
Uni-directional Repeatability, Guaranteed	±0.75 µm	±0.75 µm	±0.75 µm
Bi-directional Repeatability, Typical	±0.75 µm	±0.75 µm	±0.75 µm
Bi-directional Repeatability, Guaranteed	±1.5 µm	±1.5 µm	±1.5 µm
Origin Repeatability	±0.75 µm	±0.75 µm	±0.75 µm
Pitch, Typical	±10 µrad	±20 µrad	±30 µrad
Pitch, Guaranteed	±20 µrad	±40 µrad	±60 µrad
Yaw, Typical	±10 µrad	±17 µrad	±30 µrad
Yaw, Guaranteed	±17 µrad	±35 µrad	±53 µrad
Compliance in Pitch	6 µrad/Nm	6 µrad/Nm	6 µrad/Nm
Compliance in Yaw	5 µrad/Nm	5 µrad/Nm	5 µrad/Nm
Compliance in Roll	4 µrad/Nm	4 µrad/Nm	4 µrad/Nm
Cable Length	3 m	3 m	3 m
Thread Type	M4 and M6	M4 and M6	M4 and M6
Weight	10 kg	12.3 kg	14.6 kg
MTBF	20,000 h (25% load, 10% duty cycle)	20,000 h (25% load, 10% duty cycle)	20,000 h (25% load, 10% duty cycle)

Features

All Steel Stage Body

The all steel construction allows for extreme stiffness and thermal stability. Because the entire body is made from steel, bi-metallic bending effects and errors are eliminated. Among the all steel linear stages, the MTN boasts the highest load capacity at 100 kg.

Closed-Loop DC Motor Drive

DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. An incremental sensor consisting of an optical scale and encoder head provides position feedback for smooth motion and good repeatability. DC Motor-driven stages are preferable to stepper motor stages for applications requiring high dynamic speed and tight repeatability. MTN series is available in brushless DC motor version for faster speed and finer repeatability and stepper motor version for a more economical solution.

Diamond-Corrected Lead Screw and Precision-Lapped Nut

Recirculating ball bearings ensure better dynamics and lifetime, as well as equal axial load capacity in both directions.

Non-migrating Ball Cage Design

The non-migrating ball cage design eliminates cage drift, particularly in vertical applications, to enhance reliability.

Multi-Axis Stage Stacks and Table Mounting

For XY configurations of MTN stages, use the captive screws. The same screws can also be used for bolting MTN stages directly to custom mounting surfaces via thru-holes at the carriage. For mounting MTN stages to optical tables, please use the base plate.

MTN Stage Load Characteristics

Individual Stage Metrology Report is Included

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

MTN Motor Options

MTN Series stages are available with Stepper, DC, or Brushless DC motors.

Stepper Motor (MTN-PP): Stepper Motors are a lower cost alternative to DC motor systems for less demanding applications. Micro-stepping is used to improve resolution and smoothness of motion.
DC Motor (MTN-CC): DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. They are preferable to stepper motor stages for applications requiring high dynamic speed and tight repeatability.
Brushless DC Motor (MTN-BLHS): Brushless DC Motors offer faster speed and finer repeatability than standard DC motors. They are designed for applications that require moving heavy loads with high speed and repeatability

	MTN-PP (Stepper Motor)	MTN-CC (DC Motor)	MTN-BLHS (Brushless DC Motor)
Travel Range (mm)	100 / 200 / 300	100 / 200 / 300	100 / 200 / 300
Maximum Speed (mm/s)	40	100	250
Minimum Incremental Motion (nm)	100	600	300
Uni-directional Repeatability, Guaranteed (µm)	±0.75	±0.75	±0.3
Bi-directional Repeatability, Typical (Guaranteed) (µm)	±1.75 (±2.75)	±0.75 (±1.5)	±0.3 (±0.5)
Accuracy, Typical (Guaranteed) (µm)	±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0)	±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0)	±2.0 (±4.0)

Accessories

MTN Stage Mounting Accessories

Description	Compatibility	Avail.	Price
MTN-TPTop Plate, MTN Series Linear Stages	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$395
MTN-BPBase Plate, MTN Series Linear Stages	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$546
EQ160Right-Angle Bracket, MTN Series linear Stages	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,242
M-CAP-M61Captive Screws, MTN XY Mounting	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$77

Accessories - Cables

Description	Compatibility	Avail.	Price
MCAB-1Cable, Motorized Stage, 1 m, DB25-M to DB25-F	UNIVERSAL	In Stock	$222
MCAB-3Cable, 3 m, DB25 Male to DB25 Female	UNIVERSAL	In Stock	$273
MCAB-5Cable, 5 m, DB25 Male to DB25 Female	UNIVERSAL	Contact Us	$355
MCAB-7Cable, 7 m, DB25 Male to DB25 Female	UNIVERSAL	In Stock	$446
MCAB-10Cable, 10 m, DB25 Male to DB25 Female	UNIVERSAL	Contact Us	$556
