| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

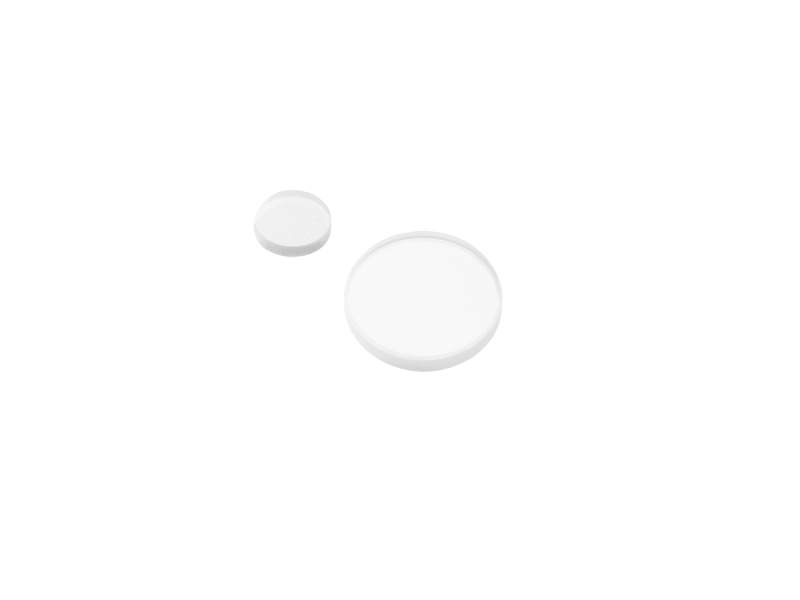

MGW10 Optical Window, Magnesium Fluoride, 5.0 mm Diameter, 1.0 mm Thick |
In Stock
|
$132 |
|
|||
|
MGW11 Optical Window, Magnesium Fluoride, 12.5 mm Diameter, 2.0 mm Thick |
In Stock
|
$221 |
|
|||
|
|
MGW12 Optical Window, Magnesium Fluoride, 25.0 mm Diameter, 3.0 mm Thick |
In Stock
|
$350 |
|
|||
|
MGW13 Optical Window, Magnesium Fluoride, 50.0 mm Diameter, 3.0 mm Thick |
In Stock
|
$839 |
|
As Magnesium Fluoride has the lowest refractive index of all optical glasses, AR coatings are not required to have low surface reflectance. Therefore the windows are not limited to the spectral band of a broadband AR coating, permitting use at any wavelength from Deep UV to IR (120nm - 8 µm). This is ideal for applications requiring transparency across multiple wavelengths simultaneously, such as spectroscopy or fluorescence imaging of samples under vacuum. The windows may also be used in excimer laser applications due to transparency in the deep UV.
Magnesium fluoride is extremely durable compared to other materials which are transparent from the UV to IR spectrum, making it an excellent choice for many biological and military imaging applications.
