The FCR's design brings together a rotary stage with a built-in controller and driver for easy integration. Not only is the controller pre-configured with intelligent stepper motor technology, iPP, but the stage is also ready for plug-and-play via USB connection. The built-in controller eliminates the need for an external controller and cables, thus saving work-space and cost.

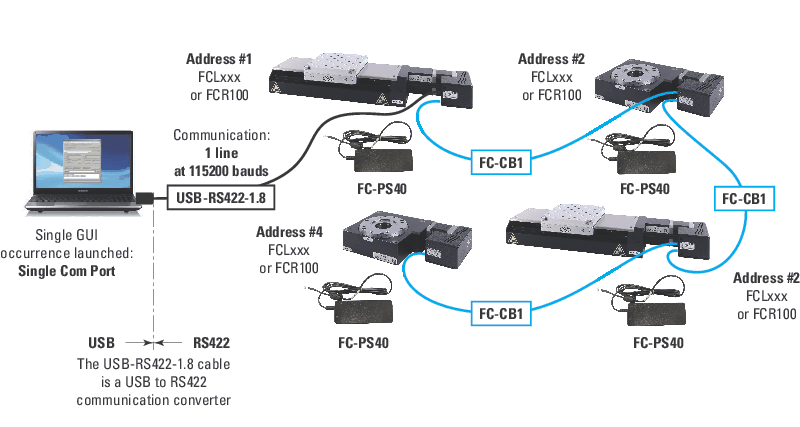

With a RS-422 interface, the FC series is equipped to easily daisy-chain and synchronize communication with up to 4 stages.

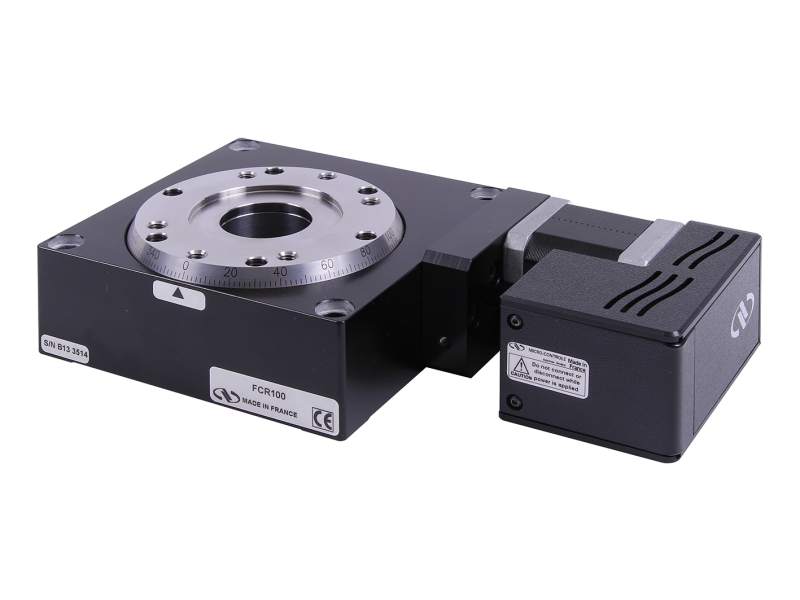

The optimized aluminum body allows for extreme stiffness without compromising weight. The rigid body reduces deflection under load. Features of the FEM-Optimized FCR100 includes: robust construction of crossed roller bearing for high position accuracy and the stepper motor directly attached to the worm screw providing high output torque.
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
Ultra-High Velocity
