Compare Model Drawings, CAD & Specs Width Length Mounting Holes Load Capacity Availability Price

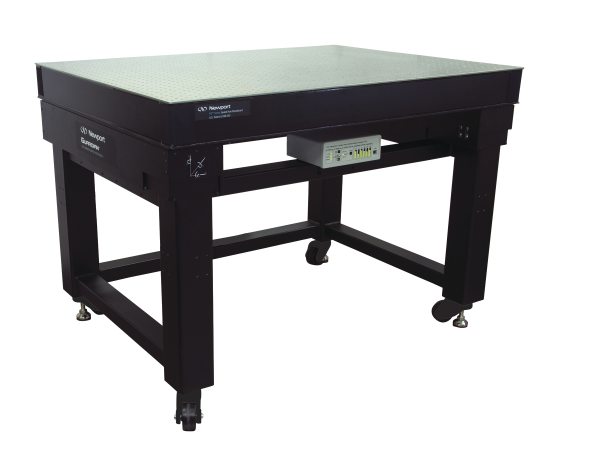

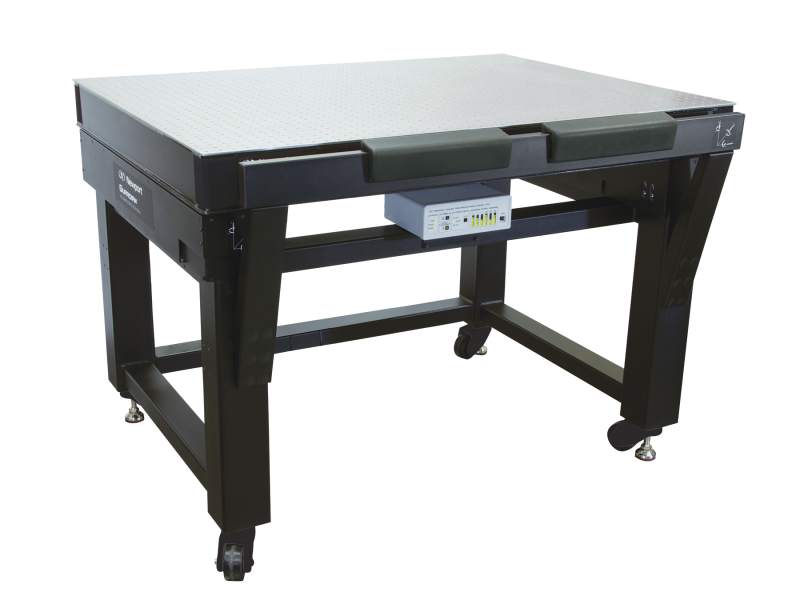

Guardian active isolation optical table workstation
Active Isolation Workstation, 30 x 36 x 4.3 in. PG Breadboard, 110-420 lbs.
30 in. 36 in. 1/4-20 110-420 lbs
Guardian active isolation optical table workstation
Active Isolation Workstation, 30 x 36 x 4.3 in. PG Breadboard, 190 lbs.
30 in. 36 in. 1/4-20 0-190 lbs
Guardian active isolation optical table workstation
Active Isolation Workstation, 36 x 48 x 4.3 in. PG Breadboard, 20-320 lbs.
36 in. 48 in. 1/4-20 20-320 lbs
Guardian active isolation optical table workstation
Active Isolation Workstation, 36 x 60 x 4.3 in. PG Breadboard, 20-320 lb.
$21,176
36 in. 60 in. 1/4-20 0-240 lbs
Guardian active isolation optical table workstation
Active Isolation Workstation, 750x900x110 mm PG Breadboard, 50-190.5 kg
750 mm 900 mm M6 50-190.5 kg
Guardian active isolation optical table workstation
Active Isolation Workstation, 750x900x110 mm PG Breadboard, 86.2 kg
750 mm 900 mm M6 86.2 kg
Guardian active isolation optical table workstation
Active Isolation Workstation, 900x1200x110 mm PG Breadboard, 9-145 kg
900 mm 1200 mm M6 9-145 kg
Guardian active isolation optical table workstation
Active Isolation Workstation, 900x1500 mm, 4.3 in. PG Breadboard, 110 kg
$21,176
900 mm 1500 mm M6 109 kg

Specifications

  • Type
    Active Isolation Optical Workstation
  • Broadband Damping
    Integrated Patented Modal Damping including constrained layer core, damped working surface and composite edge finish
  • Modal Damping
    Yes
  • Mounting Hole Type
    Cut (not rolled) threads with countersink
  • Mounting Hole Pattern
    1 in. (25 mm) grid
  • Mounting Hole Borders
    0.5 in. (12.5 mm)
  • Hole Sealing Type
    Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
  • Platform
    4.3 in. Thick Precision Grade Optical Breadboard
  • Top and Bottom Skins
    3/16 in. thick with integrated damping layer
  • Working Surface
    400 series ferromagnetic stainless steel
  • Surface Flatness
    ±0.004 in. (0.1 mm) over 2 ft. (600 mm) square

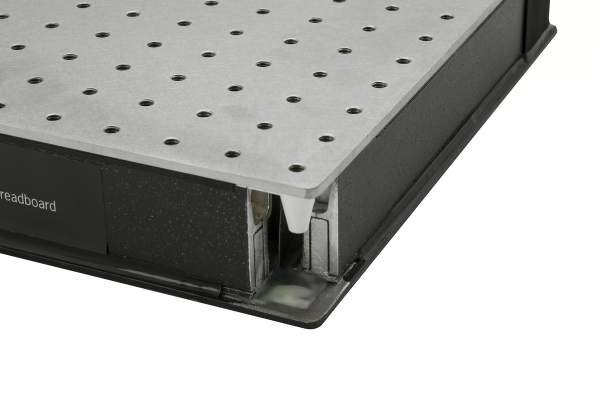

  • Core Design
    Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface
