Compare Model Drawings, CAD & Specs Availability Price
MCAB-1
Cable, Motorized Stage, 1 m, DB25-M to DB25-F
$216
3 Weeks
 MCAB-1 Cable, Motorized Stage, 1 m, DB25-M to DB25-F
3 Weeks
 $216
MCAB-3
Cable, 3 m, DB25 Male to DB25 Female
$265
3 Weeks
 MCAB-3 Cable, 3 m, DB25 Male to DB25 Female
3 Weeks
 $265
MCAB-1-B
Cable, 1 m, DB25 Male to DB25 Female, Brushless DC
$271
Contact Us
 MCAB-1-B Cable, 1 m, DB25 Male to DB25 Female, Brushless DC
Contact Us
 $271
MCAB-10-B
Cable, 10 m, DB25 Male to DB25 Female, Brushless DC
$649
Contact Us
 MCAB-10-B Cable, 10 m, DB25 Male to DB25 Female, Brushless DC
Contact Us
 $649
MCAB-3-B
Cable, 3 m, DB25 Male to DB25 Female, Brushless DC
$331
In Stock
 MCAB-3-B Cable, 3 m, DB25 Male to DB25 Female, Brushless DC
In Stock
 $331
MCAB-5-B
Cable, 5 m, DB25 Male to DB25 Female, Brushless DC
$409
Contact Us
 MCAB-5-B Cable, 5 m, DB25 Male to DB25 Female, Brushless DC
Contact Us
 $409
MCAB-5
Cable, 5 m, DB25 Male to DB25 Female
$344
In Stock
 MCAB-5 Cable, 5 m, DB25 Male to DB25 Female
In Stock
 $344
MCAB-7
Cable, 7 m, DB25 Male to DB25 Female
$433
In Stock
 MCAB-7 Cable, 7 m, DB25 Male to DB25 Female
In Stock
 $433
MCAB-10
Cable, 10 m, DB25 Male to DB25 Female
$539
In Stock
 MCAB-10 Cable, 10 m, DB25 Male to DB25 Female
In Stock
 $539
MSCABLE-3
Cable, DB-25 Male to DB-15 Female, 3 m Length
$644
In Stock
 MSCABLE-3 Cable, DB-25 Male to DB-15 Female, 3 m Length
In Stock
 $644
MSCABLE-10
Cable, DB-25 Male to DB-15 Female, 10 m Length
$668
In Stock
 MSCABLE-10 Cable, DB-25 Male to DB-15 Female, 10 m Length
In Stock
 $668
MMCABLE-10
Cable, 10 m, DB25 Male to DB25 Female
$675
MMCABLE-10 Cable, 10 m, DB25 Male to DB25 Female $675

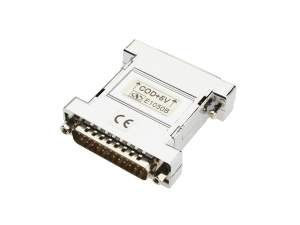

MMCABLE-REG
Inline Regulator, 5 VDC, for MMCABLEs 5 m or longer
$235
In Stock
 MMCABLE-REG Inline Regulator, 5 VDC, for MMCABLEs 5 m or longer
In Stock
 $235
Notes:

Wiring diagrams can be viewed by opening the drawings contained in the above table.

Features

Standard ESP-Compatible Cables

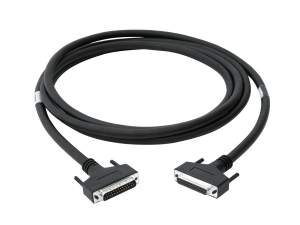

The MCAB cables are recommended for use with all DC (CC) and bi-polar stepper (BPP/BPE) motor driven ESP-compatible stages. Available in 1-, 3-, 5-, 7- and 10-m lengths, these cables contain a DB25 male and DB25 female connectors.

Cable for Brushless DC Motor

The MCAB-3-B is a 3-m long cable with DB25 male and DB25 female connectors recommended for use with MTN-BLHS brushless DC motor linear stages. These stages are compatible with an XPS controller with XPS-EDBL amplifier.

Cable with DB25 and DB15 Connectors

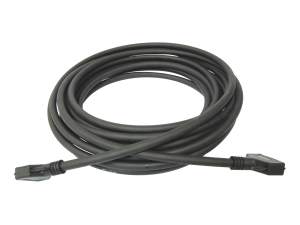

The MSCABLE-3 and MSCABLE-10 are 3- and 10-m length cables, respectively, with a DB25 male and DB15 female connectors. They are recommended for use with UTS, URS, UZS, RVS and BGS series ESP-compatible stages.

Longer Cables

When a 5-m or longer MCAB cable is used, the MMCABLE-REG is required to ensure a high quality, regulated 5-VDC supply to the stage. And if cables 10 m or longer are required, please contact Newport to discuss the optimal solution for your application.

Resources

Manuals
