DM Thread-Mount Differential Micrometer Heads
DM Thread-Mount Differential Micrometer Heads

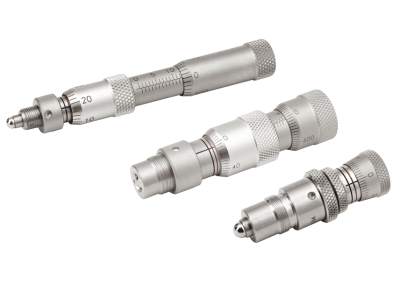

The DM differential micrometers provide sub-micron positioning capabilities and up to 25 mm coarse travel in a single device. They employ the same mounting bezel as our standard BM micrometer heads, so they may be used to upgrade stages and mounts for improvement in resolution.
- 0.1 µm sensitivity differential micrometer
- Direct upgrade for BM Series micrometers
- Large selection of sizes and travel ranges See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BD17.04Differential Micrometer Head, 4.3 mm Coarse, 0.3 mm Fine, 11 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

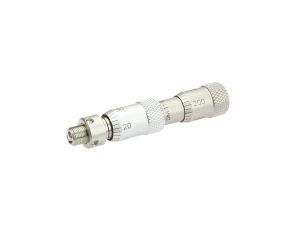

 | DM11-5Differential Micrometer Head, 5.1 mm Coarse, 0.1 mm Fine, 6.6 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

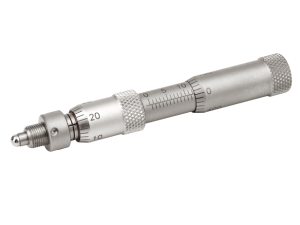

 | DM11-16Differential Micrometer Head, 16.1 mm Coarse, 0.1 mm Fine, 6.6 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

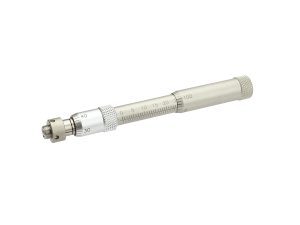

 | DM11-25Differential Micrometer Head, 25.1 mm Coarse, 0.1 mm Fine, 6.6 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

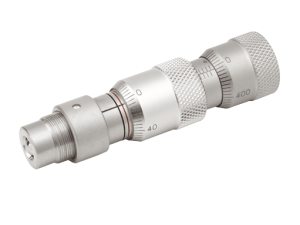

 | DM17-4Differential Micrometer Head, 4.1 mm Coarse, 0.1 mm Fine, 11 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

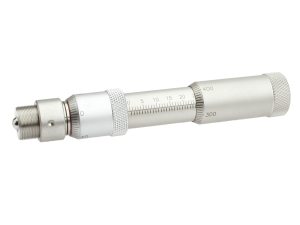

 | DM17-25Differential Micrometer Head, 25.1 mm Coarse, 0.1 mm Fine, 11 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
DM Series Micrometers
| Models | | | | | | |
|---|---|---|---|---|---|---|
| Travel Range | 5.0 mm | 16.0 mm | 25.0 mm | 4.1 mm | 25.0 mm | |
| Drive Type | Knob | Knob | Knob | Knob | Knob | |
| Axial Load Capacity | 30 N | 30 N | 30 N | 49 N | 49 N | |
| Graduations | 20 µm | 20 µm | 20 µm | 10 µm | 10 µm | |
| Graduations, Fine | 2 µm | 2 µm | 2 µm | 1 µm | 1 µm | |
| Fine Travel | 0.10 mm | 0.10 mm | 0.10 mm | 0.10 mm | 0.10 mm | |
| Sensitivity | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | 0.1 µm | |
| Mounting Threads | M6x0.5 | M6x0.5 | M6x0.5 | M12x0.5 | M12x0.5 |
Features
Highly Sensitive Differential Micrometer
The DM series differential micrometers provide ultra-fine, sub-micron positioning capabilities and coarse, long travel adjustments in a single device. In essence, the DM series micrometers are standard micrometers with a 0.05 mm pitch high-resolution micrometer built around it. Coarse positioning, provided by the control knob at the end enables rapid translation with a sensitivity of 1 μm. Then, by using the fine adjustment knob closest to the positioner, the position can be further optimized with a sensitivity of 0.1 μm over a limited travel range.
Easy to Read Scale
Compatible Newport Stages & Mounts
DM Series Micrometers are compatible with the following manual stages and mounts:
- UMR Series
- SDS Series
- MVN Series
- SL Series
- SL-A Series
