Diffraction Gratings for Oriel^® CS260 Monochromators and MS260i Imaging Spectrographs

$Diffraction Gratings for Oriel® CS260 Monochromators and MS260i Imaging Spectrographs$

Diffraction Gratings for Oriel^® CS260 Monochromators and MS260i Imaging Spectrographs

The following gratings are listed for reference only, as Newport has officially discontinued factory service support for the CS260 and MS260i series. Contact your Newport sales representative for more information.

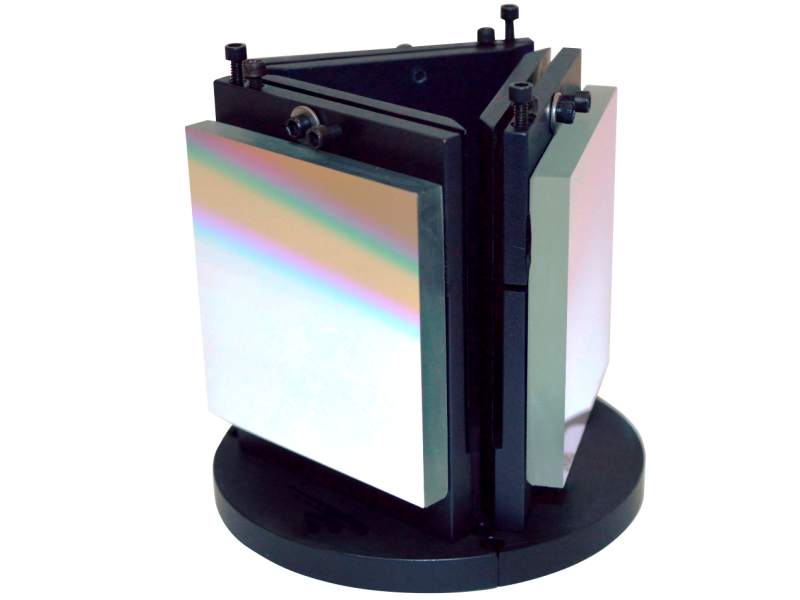

High quality diffraction gratings are available for use with the Oriel^® CS260 family of monochromators and MS260i imaging spectrographs. These instruments are designed to hold up to three gratings simultaneously. This selection covers a broad wavelength range and gratings can be replaced, making the CS260 and MS260i flexible instruments that meet the needs of many different applications. Gratings are installed by Newport. Contact us for more information.

High quality
Broad wavelength coverage
Efficient performance
Ruled and holographic gratings
Special orders welcome

See All Features

Show Filters:

Showing 43 of 43 total products

Compatibility:

Compare	Description	Compatibility	Grating Mount	Type	Blaze Wavelength	Primary Wavelength Region	Grooves per mm	Avail.	Price

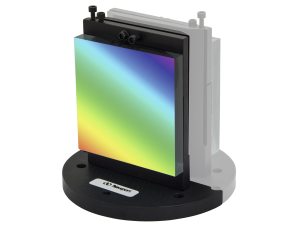

$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74060Diffraction Grating Assembly, Triple, 275 nm blaze, 200-700 nm	UNIVERSAL	Triple	Ruled	275 nm	200 to 700 nm	2400	Contact Us	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74061Diffraction Grating Assembly, Triple, 560nm blaze, 320-925nm	UNIVERSAL	Triple	Holographic	560 nm	320 to 925 nm	1800	6 Weeks	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74062Diffraction Grating Assembly, Triple, 240nm blaze, 200-600nm	UNIVERSAL	Triple	Holographic	240 nm	200 to 600 nm	1200	In Stock	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74063Diffraction Grating Assembly, Triple, 360 nm blaze, 200-1400 nm	UNIVERSAL	Triple	Ruled	360 nm	200 to 1400 nm	1200	In Stock	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74064Diffraction Grating Assembly, Triple, 750 nm blaze, 475-1400 nm	UNIVERSAL	Triple	Ruled	750 nm	475 to 1400 nm	1200	6 Weeks	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74065Diffraction Grating Assembly, Triple, 225 nm blaze, 200-400 nm	UNIVERSAL	Triple	Ruled	225 nm	200 to 400 nm	600	Contact Us	$830
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74066Diffraction Grating Assembly, Triple, 370 nm blaze, 270-1000 nm	UNIVERSAL	Triple	Ruled	370 nm	270 to 1000 nm	600	Contact Us	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74067Diffraction Grating Assembly, Triple, 1000 nm blaze, 650-2200 nm	UNIVERSAL	Triple	Ruled	1000 nm	650-2200 nm	600	6 Weeks	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74068Diffraction Grating Assembly, Triple, 1350 nm blaze, 800-1900 nm	UNIVERSAL	Triple	Ruled	1350 nm	800 to 1900 nm	600	In Stock	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74069Diffraction Grating Assembly, Triple, 1325 nm blaze, 875-2200 nm	UNIVERSAL	Triple	Ruled	1325 nm	875 to 2200 nm	600	Contact Us	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74070Diffraction Grating Assembly, Triple, 1100 nm blaze, 675-2500 nm	UNIVERSAL	Triple	Ruled	1100 nm	675 to 2500 nm	400	Contact Us	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74071Diffraction Grating Assembly, Triple, 1500 nm blaze, 925-2600 nm	UNIVERSAL	Triple	Ruled	1500 nm	925 to 2600 nm	400	Contact Us	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74072Diffraction Grating Assembly, Triple, 475 nm blaze, 300-1000 nm	UNIVERSAL	Triple	Ruled	475 nm	300 to 1000 nm	300	6 Weeks	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74073Diffraction Grating Assembly, Triple, 950 nm blaze, 625-2000 nm	UNIVERSAL	Triple	Ruled	950 nm	625 to 2000 nm	300	In Stock	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74074Diffraction Grating Assembly, Triple, 1700 nm blaze, 1100-2400 nm	UNIVERSAL	Triple	Ruled	1700 nm	1100 to 2400 nm	300	In Stock	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74075Diffraction Grating Assembly, Triple, 226 nm blaze, 200-500 nm	UNIVERSAL	Triple	Ruled	226 nm	200 to 500 nm	246.16	6 Weeks	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74076Diffraction Grating Assembly, Triple, 950 nm blaze, 580-1900 nm	UNIVERSAL	Triple	Ruled	950 nm	580 to 1900 nm	200	6 Weeks	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74077Diffraction Grating Assembly, Triple, 300 nm blaze, 200-650 nm	UNIVERSAL	Triple	Ruled	300 nm	200 to 650 nm	150	1 Week	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74078Diffraction Grating Assembly, Triple, 775 nm blaze, 425-1750 nm	UNIVERSAL	Triple	Ruled	775 nm	425 to 1750 nm	150	6 Weeks	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74080Diffraction Grating Assembly, Triple, 4000 nm blaze, 2500-12000 nm	UNIVERSAL	Triple	Ruled	4000 nm	2500 to 12000 nm	150	Contact Us	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74081Diffraction Grating Assembly, Triple, 410 nm blaze, 260-550 nm	UNIVERSAL	Triple	Ruled	410 nm	260 to 550 nm	121.6	Contact Us	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74082Diffraction Grating Assembly, Triple, 7 um blaze, 4.5-20 um	UNIVERSAL	Triple	Ruled	7000 nm	4.5 to 20 µm	75	In Stock	$525
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74160Diffraction Grating Assembly, Double, 275 nm blaze, 200-700 nm	UNIVERSAL	Double	Ruled	275 nm	200 to 700 nm	2400	In Stock	$680

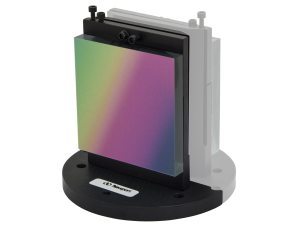

$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74161Diffraction Grating Assembly, Double, 560 nm blaze, 320-925 nm	UNIVERSAL	Double	Holographic	560 nm	320 to 925 nm	1800	In Stock	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74162Diffraction Grating Assembly, Double, 240 nm blaze, 200-600 nm	UNIVERSAL	Double	Holographic	240 nm	200 to 600 nm	1200	Contact Us	$705
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74163Diffraction Grating Assembly, Double, 360 nm blaze, 200-1400 nm	UNIVERSAL	Double	Ruled	360 nm	200 to 1400 nm	1200	In Stock	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74164Diffraction Grating Assembly, Double, 750 nm blaze, 475-1400 nm	UNIVERSAL	Double	Ruled	750 nm	475 to 1400 nm	1200	Contact Us	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74165Diffraction Grating Assembly, Double, 225 nm blaze, 200-400 nm	UNIVERSAL	Double	Ruled	225 nm	200 to 400 nm	600	Contact Us	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74166Diffraction Grating Assembly, Double, 370 nm blaze, 270-1000 nm	UNIVERSAL	Double	Ruled	370 nm	270 to 1000 nm	600	6 Weeks	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74167Diffraction Grating Assembly, Double, 1000 nm blaze, 650-2200 nm	UNIVERSAL	Double	Ruled	1000 nm	650 to 2200 nm	600	In Stock	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74169Diffraction Grating Assembly, Double, 1325 nm blaze, 875 -2200 nm	UNIVERSAL	Double	Ruled	1325 nm	875 to 2200 nm	600	6 Weeks	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74170Diffraction Grating Assembly, Double, 1100 nm blaze, 675-2500 nm	UNIVERSAL	Double	Ruled	1100 nm	675 to 2500 nm	400	6 Weeks	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74171Diffraction Grating Assembly, Double, 1500 nm blaze, 925-2600 nm	UNIVERSAL	Double	Ruled	1500 nm	925 to 2600 nm	400	6 Weeks	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74173Diffraction Grating Assembly, Double, 950 nm blaze, 625-2000 nm	UNIVERSAL	Double	Ruled	950 nm	625 to 2000 nm	300	6 Weeks	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74174Diffraction Grating Assembly, Double, 1700 nm blaze, 1100-2400 nm	UNIVERSAL	Double	Ruled	1700 nm	1100 to 2400 nm	300	Contact Us	$705
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74175Diffraction Grating Assembly, Double, 226 nm blaze, 200-500 nm	UNIVERSAL	Double	Ruled	226 nm	200 to 500 nm	246.16	6 Weeks	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74177Diffraction Grating Assembly, Double, 300 nm blaze, 200-650 nm	UNIVERSAL	Double	Ruled	300 nm	200 to 650 nm	150	6 Weeks	$625
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74179Diffraction Grating Assembly, Double, 2500 nm blaze, 2500-3250 nm	UNIVERSAL	Double	Ruled	2500 nm	2500 to 3250 nm	150	In Stock	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74180Diffraction Grating Assembly, Double, 4000 nm blaze, 2500-12000 nm	UNIVERSAL	Double	Ruled	4000 nm	2500 to 12000 nm	150	Contact Us	$625
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74181Diffraction Grating Assembly, Double, 410 nm blaze, 260-550 nm	UNIVERSAL	Double	Ruled	410 nm	260 to 550 nm	121.6	6 Weeks	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	74182Diffraction Grating Assembly, Double, 7 um blaze, 4.5-20 um	UNIVERSAL	Double	Ruled	7000 nm	4.5 to 20 µm	75	In Stock	$655
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	77985Diffraction Grating Assembly, Triple, 500 nm blaze, 300-1100 nm	UNIVERSAL	Triple	Ruled	500 nm	300 to 1100 nm	1200	In Stock	$1,045
$Diffraction Gratings for CS260 Monochromators and MS260i Spectrographs$	77989Diffraction Grating Assembly, Triple, 975 nm blaze, 350-1400 nm	UNIVERSAL	Triple	Ruled	975 nm	350 to 1400 nm	1200	In Stock	$1,045

Show Less

Features

High Quality

Plane ruled and holographic gratings listed here are fabricated from float glass substrates with an aluminum coating. Oriel monochromators and spectrographs feature diffraction gratings produced by Richardson Gratings. Both Oriel Instruments and Richardson Gratings are part of the Newport family of brands, and have a long history of working together to design instruments that are appropriate for a wide variety of applications.

Plane Ruled Gratings

For a plane blazed grating, the groove spacing and blaze angle determine the distribution of energy. The blaze direction for most gratings is specified for first order Littrow use. In Littrow use, light is diffracted from the grating back toward the source. Gratings used in the Littrow configuration have the advantage of maximum efficiency, or blaze, at specific wavelengths.

Broad Wavelength Coverage

Standard grating assemblies are available from UV, VIS and NIR. The primary wavelength region is where the grating efficiency is greater than or equal to 20%. System efficiency will also be affected by the reflectivity of the mirrors and the grating angle, at any wavelength. The CS260 and MS260i gratings are available with operating ranges from 200 nm to 20 µm. For the broadest wavelength coverage, select grating assemblies with triple mounts. Three gratings extend the usable wavelength range of the instrument. For those applications requiring reduced stray light and/or increased throughput, select grating assemblies with double mounts. If all of these factors are important, consider using the Oriel MS257 monochromator or imaging spectrograph which holds up to four gratings and has very low stray light.

Blazed Holographic Gratings

Holographic gratings normally have a sinusoidal groove shape, which is the result of recording interference fringe fields in photoresist material. Since the grooves are symmetrical, they do not have a preferred blaze direction and hence the gratings carry no blaze arrows. The range of useful diffraction efficiency is controlled by varying the modulation (the ratio of groove depth to groove spacing). The lower the modulation, the shorter the wavelength limit to which the grating can be used, but the peak efficiency may be lowered as well. We have found that three modulation levels are adequate for nearly all purposes.

High Efficiency

High-efficiency gratings are desirable for several reasons. A grating with high efficiency is more useful than one with lower efficiency in measuring weak transition lines in optical spectra. A grating with high efficiency may allow the reflectivity and transmissivity specifications for the other components in the spectrometer to be relaxed. Moreover, higher diffracted energy may imply lower instrumental stray light due to other diffracted orders, as the total energy flow for a given wavelength leaving the grating is conserved (being equal to the energy flow incident on it minus any scattering and absorption).

Special Orders Welcome

In addition to the gratings listed here, special order gratings may also be available for use in a wide variety of applications. Custom grating requests include gold coating for increased IR efficiency, AlMgF₂ coating for increased UV efficiency and many other requests. Gratings may be installed into a variety of mounts for use in specific monochromators or spectrographs. Contact Newport Sales for more information.

Resources

Technical Notes

Diffraction Grating Physics
