Compact Time Delay Coils

Making compact and low loss fiber coils demands attention, precision and skill. With proprietary manufacturing processes, Newport's F-TDC Compact Time Delay Coils provide extremely low insertion loss while fitting your budget and small spaces.

Compact size
Low insertion loss
Select from preset delay lengths: 10 - 4000m
Rugged construction
Easy to use

See All Features

Specifications

Type
Fixed Delay Line
Fiber Type
Singlemode
Operating Wavelength
1260-1650 nm
Maximum Insertion Loss
<0.5 dB/km

Typical Insertion Loss
<0.3 dB/km
Dimensions
152.4 x 152.4 x 40.39 mm
Length
10 to 4000 m
Optical Delay Range
Dependent on fiber length

Features

Compact, Rugged Design

No more large fiber spools to occupy your work area and no more high losses associated with small diameter spools! Newport's Compact Time Delay Coils fill a void in the Photonics market where large time delays yet small sizes are essential. Each coil is ruggedly packaged to withstand serious handling in field applications.

Order a Custom Delay Length

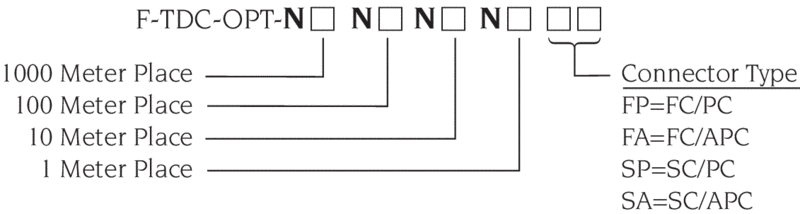

Construct the part number for a time delay coil of any fiber length from 10 m to 4000 m using this template. For example, to order a time delay coil 1350 meters long with FC/APC connectors, use part number F-TDC-OPT-N1N3N5N0FA. Time Delay Coils cannot be ordered online. Please call Newport to obtain pricing or to place an order.

Calculate Required Delay Length

To calculate the required fiber length to obtain a specific time delay, use the following formula: L = c Δt / n where c is the speed of light in vacuum, Δt is the desired time delay, and n is the index of refraction of fused silica at the wavelength of interest (use n = 1.4677 at 1310 nm and n = 1.4682 at 1550 nm).
