Sorry, this family of products is no longer available. The recommended replacement product is CONEX-AG-PR100P.

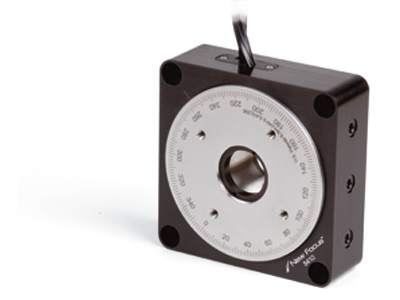

Closed Loop Picomotor Piezo Rotation Mount
Closed Loop Picomotor Piezo Rotation Mount
The 8410 encoded closed loop picomotor rotary mount offers superior position feedback for rotational accuracy. It provides microradian precision and continuous 360° rotation.
- Based on Picomotor™ actuator technology
- Encoder for closed-loop precise rotation
- 0.2-mrad resolution See All Features
Specifications
- Optic Diameter25.4 mm
- Maximum Speed>3.3 rev/min.
- Angular Range360°
- Centered Load Capacity4.4 N
- Minimum Incremental Motion0.2 mrad
- Thread Type8-32
- Operating Temperature10 to 40 ˚C
- Retaining Ring Thread1.040-32
Features
Applications
With angular resolution of 0.2 mrad and superior position feedback for rotational accuracy, the 8410 Encoded, Closed-Loop Picomotor Rotary Stage can be used for several applications, including positioning wave plates and polarizers. The 8410 Closed-Loop Picomotor Rotary Stage is especially suitable for applications requiring high accuracy, high sensitivity, and repeatability (MIM, aka practical resolution). It features 1.040-32 internal thread and comes with one retaining ring for mounting 1.0 in. diameter optical components.
Accessories
Compatible Controller/Drivers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8743-CLPicomotor Driver Module, Closed-Loop, 2 Channel | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8743-CL-2-KITMotion Controller Kit, Closed Loop, Two-Axis Picomotor Driver, 8743-CL | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8745-PSPower Supply, 8742 and 8743-CL Controller/Driver, 12V | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8745-MTG-KITMounting Plate Kit, Optical Table, 8742 and 8743-CL Controller/Driver | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8745-STK-KITStacking Plate Kit, L-Shaped,8742 and 8743-CL Controller/Driver | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8745-PWR-CBLPower Cable, 6 in. Length, 8742 and 8743-CL Controller/Driver | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8745-USB-CBLUSB Cable, 3 Meters Length, 8742 and 8743-CL Controller/Driver | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8745-RS485-CBLRS-485 Cable, 6 in. Length, 8742 and 8743-CL Controller/Driver | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Resources
Literature
Nanopositioning Solutions(9.3 MB, PDF) Picomotor FAQ(3.1 MB, PDF)
