Overview

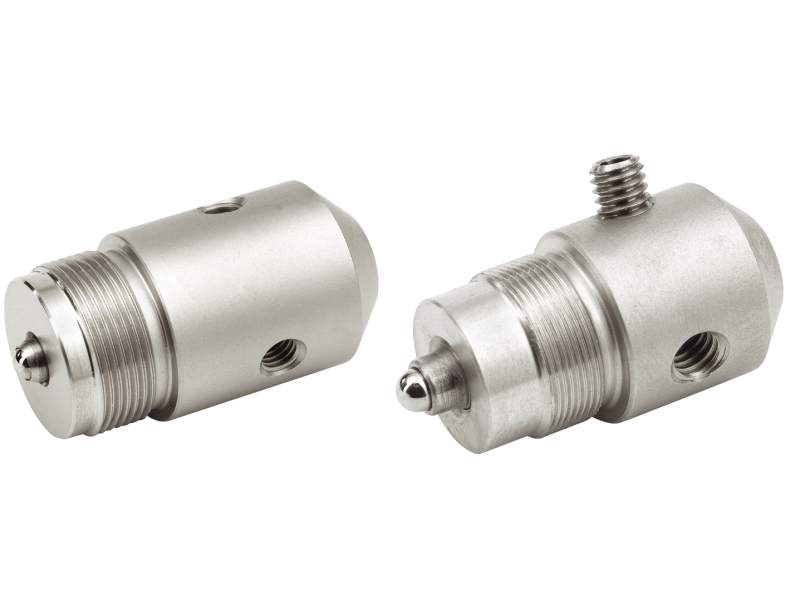

BHC Series precision adjustment screws have completely enclosed screws to protect against thread contamination or damage, making them an excellent choice for custom or OEM designs.

50.8 TPI thread pitch
Tamper-proof hex-head adjustment with lock
Compact size is ideal for OEM applications

See All Features

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Travel Range	Adjustment Screw Thread	Drive Type	Axial Load Capacity	Availability	Featured Item	Price		Brand
		BHC17.04 Adjustment Screw, Hex, M12 x 0.50, 4mm Travel, BHC Series $176 In Stock	BHC17.04 Adjustment Screw, Hex, M12 x 0.50, 4mm Travel, BHC Series	UNIVERSAL	0.0	1.0	0.0		0.0	4.0 mm	50.8 TPI	Hex	153 N	In Stock		$176		Newport

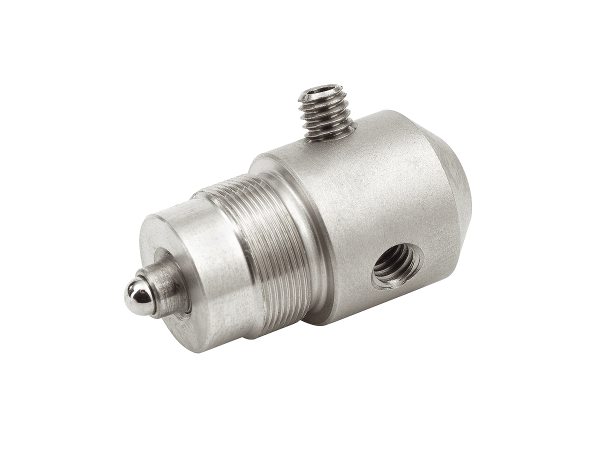

		BHC30.10 Adjustment Screw, Hex, M20 x 1.00, 10mm Travel, BHC Series $202 In Stock	BHC30.10 Adjustment Screw, Hex, M20 x 1.00, 10mm Travel, BHC Series	UNIVERSAL	0.0	1.0	0.0		0.0	10.0 mm	50.8 TPI	Hex	408 N	In Stock		$202		Newport

Show All

Specifications

Models	BHC17.04	BHC30.10
Travel Range	4.0 mm	10.0 mm
Adjustment Screw Thread	50.8 TPI	50.8 TPI
Drive Type	Hex	Hex
Axial Load Capacity	153 N	408 N
Sensitivity	1.4 µm	1.4 µm
Weight	20 g	90 g

Specifications

Models	BHC17.04	BHC30.10
Travel Range	4.0 mm	10.0 mm
Adjustment Screw Thread	50.8 TPI	50.8 TPI
Drive Type	Hex	Hex
Axial Load Capacity	153 N	408 N
Sensitivity	1.4 µm	1.4 µm
Weight	20 g	90 g

Features

Protected Adjustment Screw

Hex-head adjustment screws mean there is no knob for inadvertent adjustment. A nylon-tipped setscrew, which provides secure locking of the adjustment screw can be positioned in any of three holes in the steel collet to allow easy access locking.
