Show Filters:
Showing 21 of 21 total products
Compatibility:
Compare Description Drawings, CAD & Specs Avail. Price

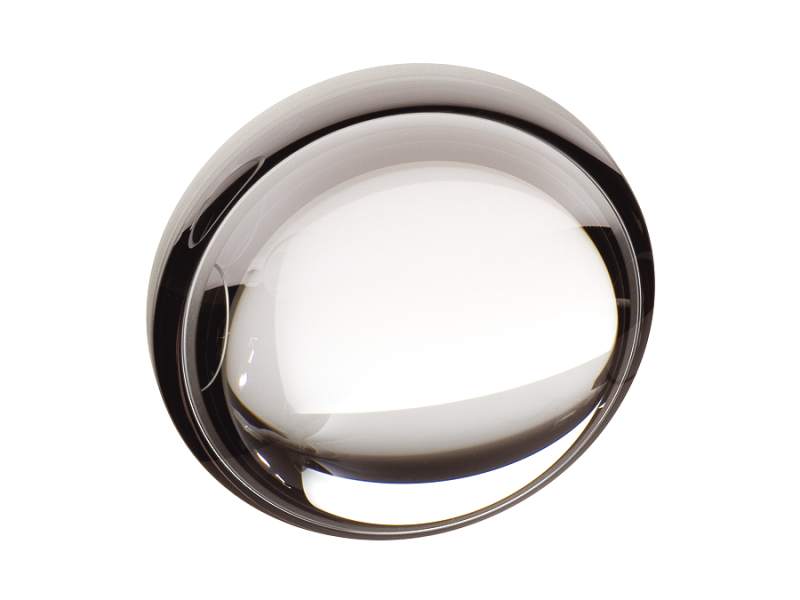

UV Coated UVFS Bi-Convex LensesSBX013AR.10Bi-Convex Lens, Fused Silica, 12.7 mm Diameter, 12.7 mm EFL, 245-440nm
6 Weeks
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$244
UV Coated UVFS Bi-Convex LensesSBX016AR.10Bi-Convex Lens, Fused Silica, 12.7 mm Diameter, 25.4 mm EFL, 245-440nm
In Stock
$244
UV Coated UVFS Bi-Convex LensesSBX018AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 20.0 mm EFL, 245-440nm
Contact Us
$244
UV Coated UVFS Bi-Convex LensesSBX019AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 25.4 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$244
UV Coated UVFS Bi-Convex LensesSBX020AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 32.0 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$244
UV Coated UVFS Bi-Convex LensesSBX022AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 50.2 mm EFL, 245-440nm
Contact Us
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$244
UV Coated UVFS Bi-Convex LensesSBX025AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 75.6 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$244
UV Coated UVFS Bi-Convex LensesSBX028AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 100 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$191
UV Coated UVFS Bi-Convex LensesSBX031AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 150 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$182
UV Coated UVFS Bi-Convex LensesSBX034AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 200 mm EFL, 245-440nm
In Stock
$180
UV Coated UVFS Bi-Convex LensesSBX037AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 250 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$180
UV Coated UVFS Bi-Convex LensesSBX040AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 500 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$180
UV Coated UVFS Bi-Convex LensesSBX043AR.10Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 1000 mm EFL, 245-440nm
In Stock
$180
UV Coated UVFS Bi-Convex LensesSBX049AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 50.2 mm EFL, 245-440nm
Contact Us
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$581
UV Coated UVFS Bi-Convex LensesSBX052AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 75.6 mm EFL, 245-440nm
In Stock
$626
UV Coated UVFS Bi-Convex LensesSBX055AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 100 mm EFL, 245-440nm
In Stock
$432
UV Coated UVFS Bi-Convex LensesSBX058AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 150 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$432
UV Coated UVFS Bi-Convex LensesSBX061AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 200 mm EFL, 245-440nm
In Stock
$373
UV Coated UVFS Bi-Convex LensesSBX064AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 250 mm EFL, 245-440nm
In Stock
$355
UV Coated UVFS Bi-Convex LensesSBX067AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 500 mm EFL, 245-440nm
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$355
UV Coated UVFS Bi-Convex LensesSBX070AR.10Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 1000 mm EFL, 245-440nm
In Stock
$355
Show Less

Mounting Options

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter LH-A-GRP
A-Line™ Lens Mounts		 LT_Series_group_update
LT Series Lens Tubes		 OM-multi_axis_lens_pos-S
LP Series Lens Positioners		 optics-cage-plus-S
Optics Cage Plus Series
76.2 mm () N/A N/A N/A
50.8 mm ()





N/A
38.1 mm () LT20 lens tube with
adapter		 LP-2 lens positioner with
adapter		 N/A
25.4 mm ()














12.7 mm ()



N/A
6.35 mm with
adapter		 LT05 lens tube with
adapter		 LP-05 lens positioner with
adapter		 N/A

For non-standard sizes not listed above, check out our variable size lens mounts.

Specifications

  • Lens Shape
    Bi-Convex (Double Convex)
  • Lens Material
    UV Fused Silica
  • Antireflection Coating
    245-440 nm
  • Coating Type
    UV Multilayer
  • Coating Code
    AR.10
  • Damage Threshold
    2 J/cm2, 10 nsec pulses, 10 Hz at 355 nm
  • Surface Quality
    20-10 scratch-dig
  • Surface Flatness
    λ/2
  • Surface Accuracy, Irregularity
    λ/8
  • Surface Accuracy, Power
    1.5 λ
  • Centration
    ≤3 arc min
  • Chamfers
    0–0.8 mm face width
  • Chamfers Angle/Tolerance
    45° ±15°, typical
  • Focal Length Tolerance
    ±1 %
  • Diameter Tolerance
    +0/-0.1 mm
  • Center Thickness Tolerance
    ±0.1 mm
  • Clear Aperture
    ≥central 90% of diameter
  • Cleaning
    See How to Clean Optics

Features

UV Fused Silica Substrates for UV, Laserline & Broadband Applications

UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage. For more information, refer to our optical materials Technical Note

Precision Bi-Convex Lens Surfaces

Our precision UV Fused Silica double-convex lenses are polished to tight tolerances minimizing wavefront distortion. Tight surface quality tolerances minimize scatter and unwanted diffraction effects. These lenses have a 20-10 scratch-dig surface quality, and a λ/8 surface irregularity. For more information, refer to the optical surfaces technical note.

Ultraviolet Antireflection Coating

Our AR.10 broadband multilayer antireflection coating markedly improves the transmission efficiency of UV lenses in the 245 to 440 nm ultraviolet region.

Standardized Bi-Convex Focal Lengths

Standard effective focal lengths on our double-convex lenses provide a systematic approach allowing for lenses of different sizes and materials to be interchanged without requiring other changes to your optical system.

Bi-Convex Lens Shape for Focusing

Bi-Convex lenses are the best choice when the object and image are at equal or near equal distance from the lens. When the object and image distance are equal (1:1 magnification), not only is spherical aberration minimized, but also coma, distortion, and chromatic aberration are identically canceled due to the symmetry. Bi-convex lenses function similarly to plano-convex lenses in that they have a positive focal length, and focus parallel rays of light to a point. Both surface are spherical and have the same radius of curvature, thereby minimizing spherical aberration. As a guideline, bi-convex lenses perform within minimum aberration at conjugate ratios between 5:1 and 1:5. Outside this magnification range, plano-convex lenses are usually more suitable.
