Miniature Dual Dowel Pin Bearing Alloy Steel Linear Stage
Miniature Dual Dowel Pin Bearing Alloy Steel Linear Stage

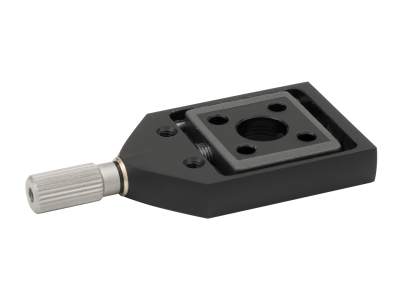

This miniature alloy steel stage is one of the smallest stages we offer. It uses a dual dowel pin bearing providing excellent performance for its size. These stages can be combined to form XY and XYZ configurations.
- Ultra-compact design
- 0.16 in. (4 mm) travel
- 5 µm sensitivity See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-MR1.4Manual Linear Stage, Miniature, 4 mm Travel, 4.9 N Load Capacity | 5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More |
Notes:
An adjustment screw is included with this stage.
Features

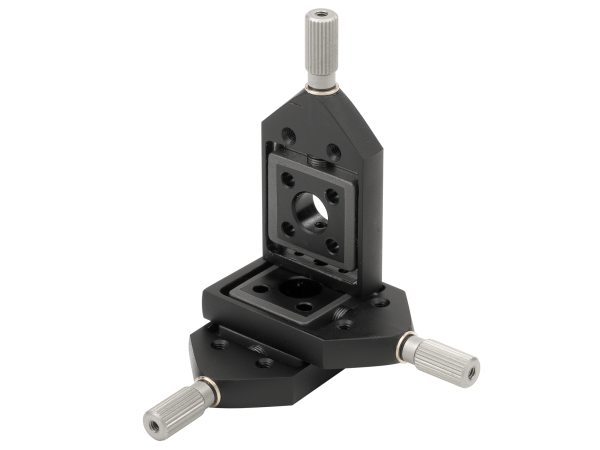

Build Miniature Multi-axis Stage Stacks

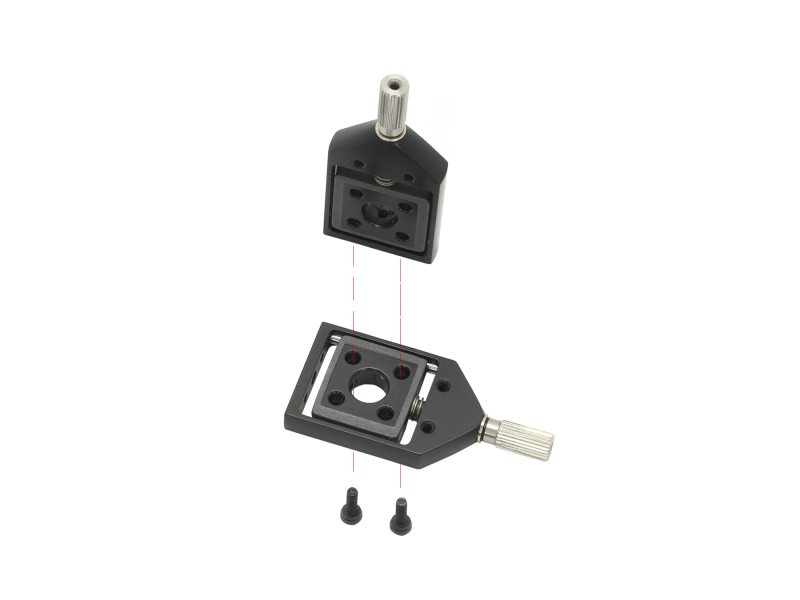

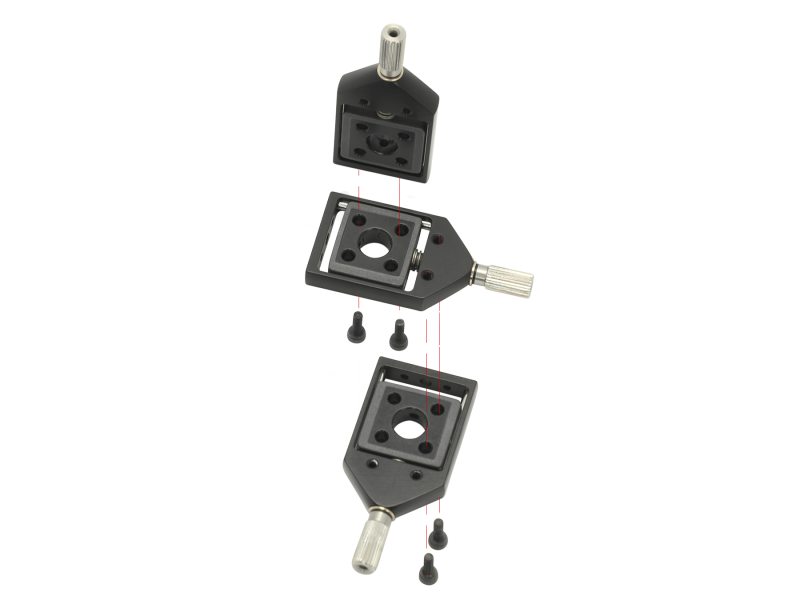

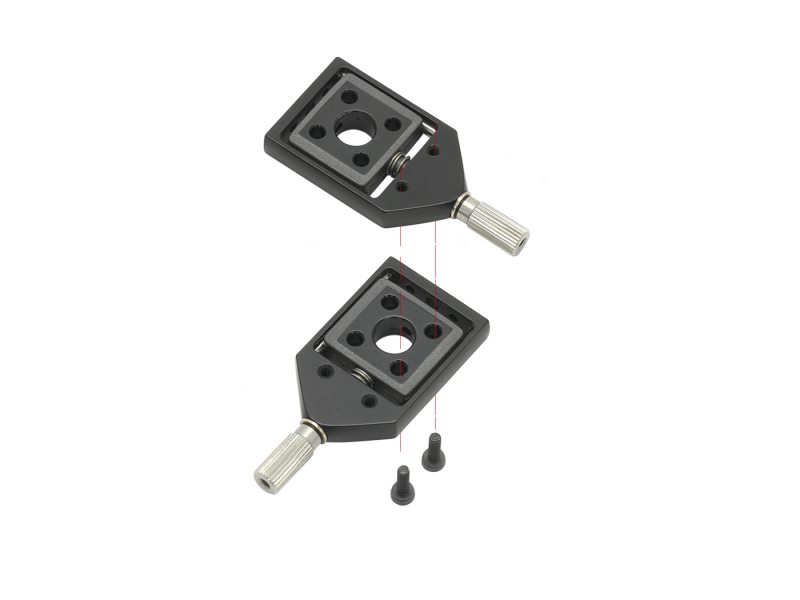

M-MR1.4 stages can be stacked to build an XY, XZ or XYZ stage configuration using the provided M2 mounting holes.
