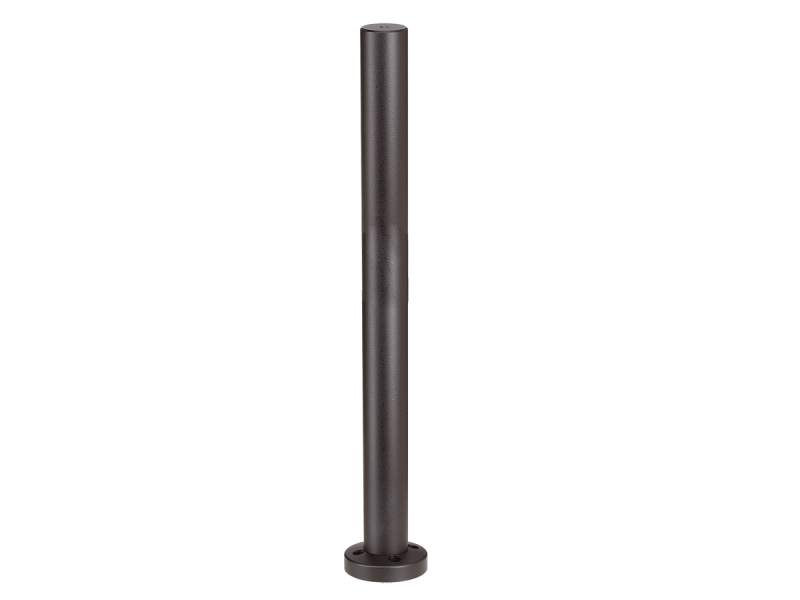

Support Rod, Microlock Breadboard, 20 in. Height, 1.56 in. Diameter, 1/4-20
Support Rod, Microlock Breadboard, 20 in. Height, 1.56 in. Diameter, 1/4-20
Model: XP-20
In Stock
Product Series Overview
1.5 in. Optical Breadboard Support PostsThe XP-20 Post attaches directly to Microlock™ Tiedowns in a breadboard providing a stable way to offset a breadboard from its primary support. The post has a 20.0 in. height and 1/4-20 thread. Intermediate heights can be achieved by using the Model P-3, P-5, or P-7 platform posts between the breadboard and the support post.
Resources & Downloads
Other
XP-20 RoHS Certificate(281.3 kB, PDF)
2D Product Drawings
XP-SERIES Drawing(76.2 kB, PDF)
