Microscope Isolation Platform, Zeiss Axio Scope 40

Zeiss Microscope Isolation Platforms

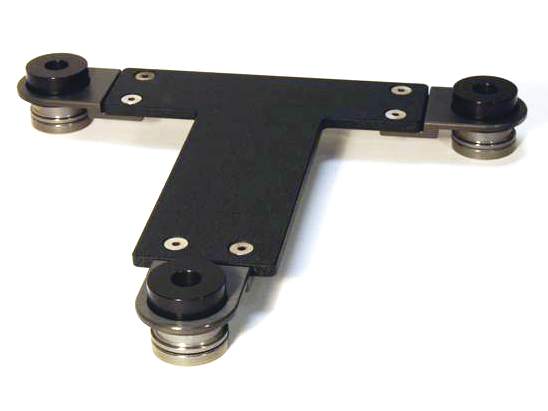

VIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-Z-017 is a compact, mechanical vibration isolation platform that fits the footprint of Zeiss Axio Scope 40, saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.

Specifications

Technical Specs

Minimum Platform Load
6 lb
Load Capacity
36 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
Axio Scope 40
Weight
32 lb

Minimum Platform Load
6 lb
Load Capacity
36 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
Axio Scope 40
Weight
32 lb

Resources & Downloads

Manuals

VIBe Series Isolation Platforms User's Manual(396.9 kB, PDF)

2D Product Drawings

VIP3200-Z-017-DWG.pdf(285.5 kB, PDF)
