Microscope Isolation Platform, Zeiss Stereo Lumar

Zeiss Microscope Isolation Platforms

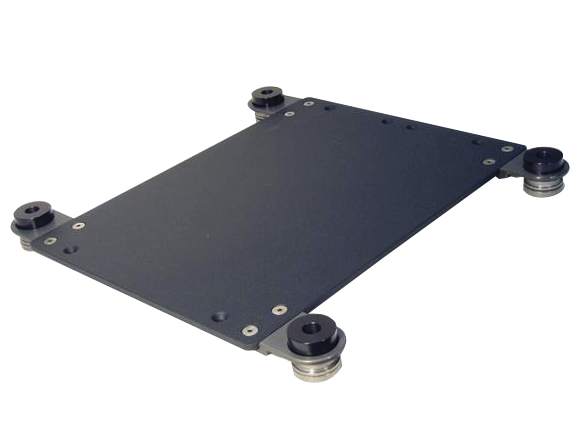

VIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-Z-010 is a compact, mechanical vibration isolation platform that fits the footprint of Zeiss Stereo Lumar, saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.

Specifications

Technical Specs

Minimum Platform Load
50 lb
Load Capacity
105 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
Stereo Lumar
Weight
49 lb

Minimum Platform Load
50 lb
Load Capacity
105 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
Stereo Lumar
Weight
49 lb

Resources & Downloads

Manuals

VIBe Series Isolation Platforms User's Manual(396.9 kB, PDF)

2D Product Drawings

VIP3200-Z-010-DWG.pdf(213.2 kB, PDF)
