Microscope Isolation Platform, Leica DMi8, 49-95 lbs.

Leica Microscope Isolation Platforms

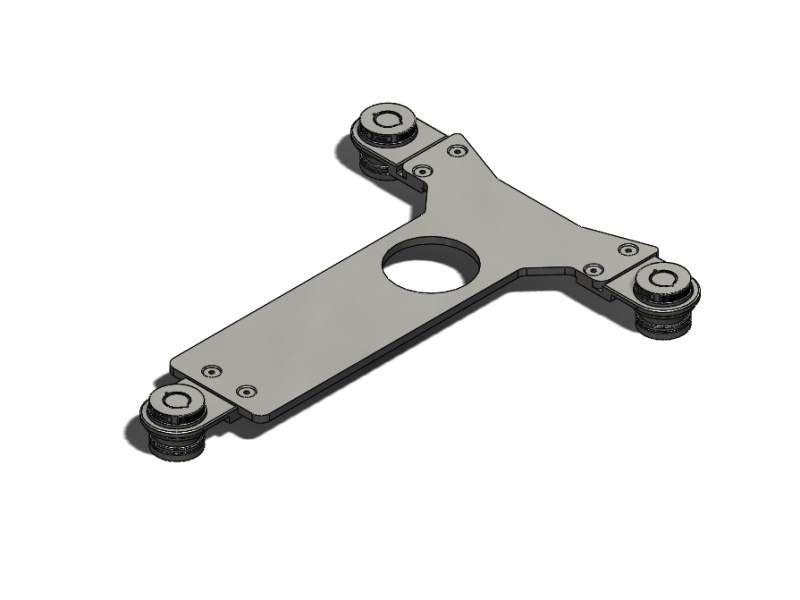

VIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-L-DMi8A is a compact, mechanical vibration isolation platform that fits the footprint of Leica DMi8(Payload of 49-95 lbs, with recommended load range of 55-85 lbs), saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.

Specifications

Technical Specs

Minimum Platform Load
49 lb
Load Capacity
95 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
DMi8
Weight
15 lb

Minimum Platform Load
49 lb
Load Capacity
95 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
DMi8
Weight
15 lb

Resources & Downloads

Manuals

VIBe Series Isolation Platforms User's Manual(396.9 kB, PDF)

2D Product Drawings

VIP3200-L-DMi8A.pdf(188.3 kB, PDF)
