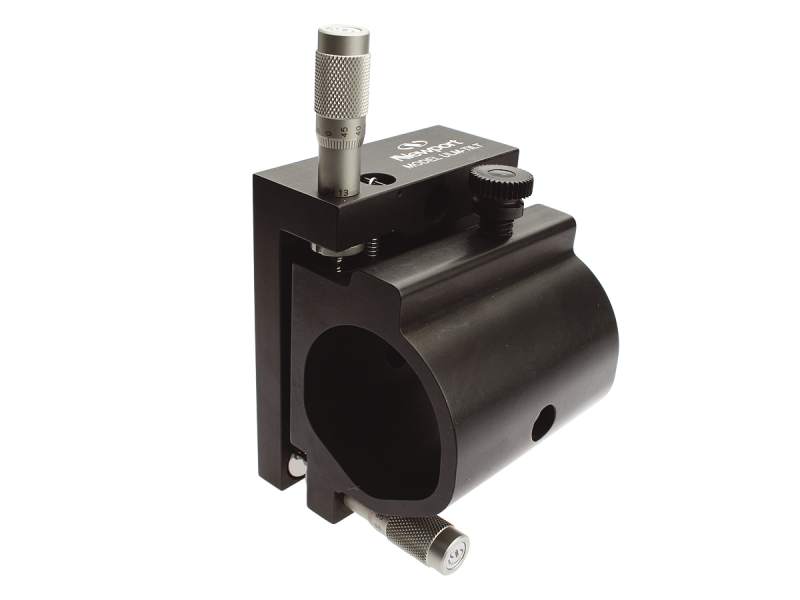

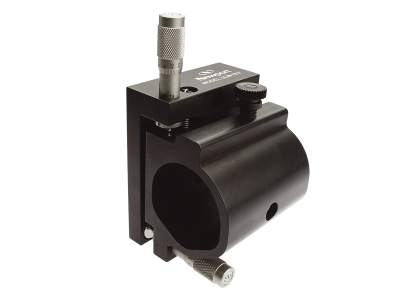

Cylindrical Laser Mount, 1.0-1.75 in. Diameter, SM-13 Micrometers
Cylindrical Laser Mount, 1.0-1.75 in. Diameter, SM-13 Micrometers
Model: ULM-TILT-M
In Stock
Product Series Overview
Cylindrical Laser Rod MountsThe ULM-TILT-M Cylindrical Laser Mount provides two axes of precision angular adjustment using a stable kinematic three-point design for drift-free pointing of laser heads and other cylindrical objects. It features hardened and polished ball and V-groove kinematic pivots to assure repeatable angular orientation and thermal stability. SM-13 micrometers act on hardened carbide inserts for smooth adjustment, minimal cross coupling and accurate beam placement. Where direct reading of position is desired, micrometer-based versions are available. The ULM-TILT-M can be mounted to other Newport mounts, rod clamps and positioners via two clearance-mounting holes. ULM Series Cylindrical Laser Mounts attach to 340-RC and 370-RC Rod Clamps and provide a convenient way to attach any 1 to 1.75 in. (25.4 to 44.5 mm) diameter cylindrical laser to Newport positioners and tables. To prevent wobble, the laser head is held securely by a nylon thumbscrew against two full-length contacts formed by a V-groove.
±4.5° Tip and Tilt Cylindrical Laser Mounts
The ULM-TILT mount provides two axes of precision angular adjustment using a stable kinematic three-point design for drift-free pointing of laser heads and other cylindrical objects. It features hardened and polished ball and V-groove kinematic pivots to assure repeatable angular orientation and thermal stability. Its high-resolution adjustment screws act on hardened carbide inserts for smooth adjustment, minimal cross coupling and accurate beam placement. Where direct reading of position is desired, micrometer-based versions are available. The ULM-TILT can be mounted to other Newport mounts, rod clamps and positioners via two clearance-mounting holes.
Rod Mount a HeNe Laser
All the ULM Cylindrical Laser Mounts can be mounted to optical rod clamps, other Newport mounts or positioners via the clearance-mounting holes.
Secure V-Groove Contacts
To prevent wobble, the laser head is held securely by a nylon thumbscrew against two full-length line contacts formed by a V-groove.
Specifications
- TypeCylindrical Laser Mount
- Diameter25.4-44.4 mm
- AdjustmentsTip and Tilt
- Adjustment TypeSM-13 Micrometers
- Angular Range±4.5°
- Use340-RC or 370-RC Rod Clamps
- Included Actuators
