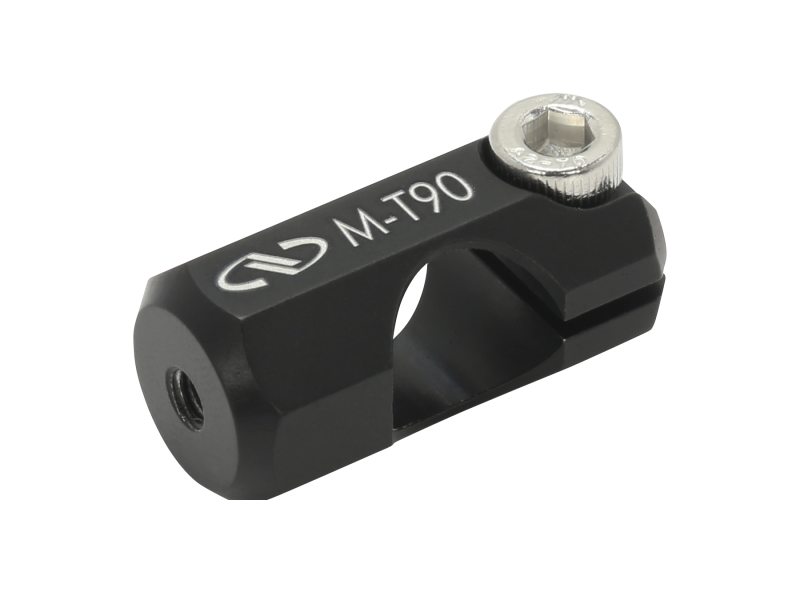

Optical Post End Clamp, Right-Angle, 0.5 in. Post, 8-32 Thread
Optical Post End Clamp, Right-Angle, 0.5 in. Post, 8-32 Thread
Model: T90
Product Series Overview

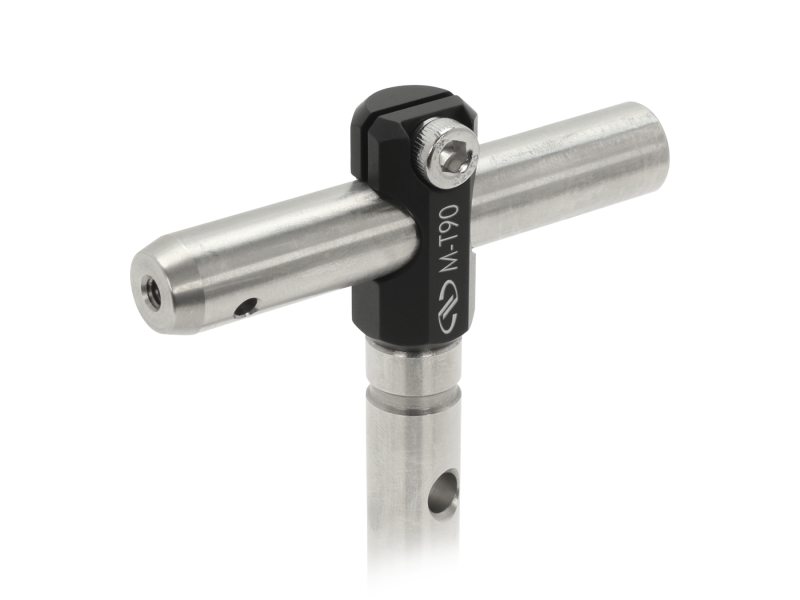

Post-Joining Angle ClampsThe T90 optical post clamp is used to mount a 0.5 inch post at the end of another 0.5 inch post at a 90 degree angle in a “T” formation. One post is clamped with a secure flexure mechanism and the other is secured by screwing the T90 into the 8-32 thread at the end of a post.
Resources & Downloads
2D Product Drawings
T90.pdf(45.6 kB, PDF)
Other
MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
