Solaris Solar Simulator, Class A+AA, IEC, 450 W Xenon, 2 x 2 in.
Solaris Solar Simulator, Class A+AA, IEC, 450 W Xenon, 2 x 2 in.
Model: SOLARIS-2
In Stock
Product Series Overview

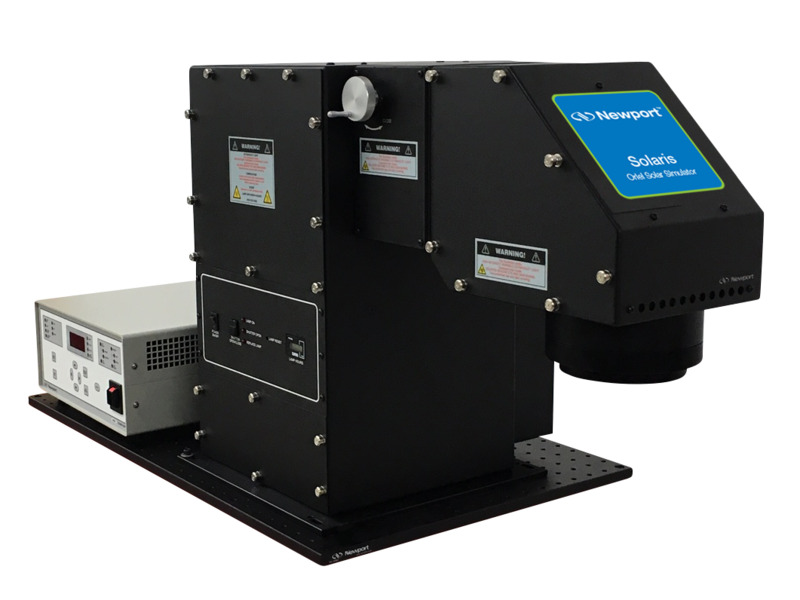

Solaris Class A+AA Solar SimulatorsThe SOLARIS-2 is a Class A+AA Solar Simulator with a 450 Watt Xenon, Ozone Free source illuminated over a 2 inch x 2 inch area, certified to IEC 60904-9:2020 standards for Spectral Match, Spatial Non-Uniformity of Irradiance, and Temporal Instability of Irradiance. This model uses a single lamp design to meet performance criteria without compromising the 1 SUN output power.
Specifications
- Simulator ClassClass A+AA
- Lamp TypeXenon
- Lamp Wattage450 W
- Output Beam Size2 x 2 in.
- Beam Uniformity≤2%
- Beam Divergence, Half Angle<±4 °
- Typical Output Power100mW/cm2 (1 Sun)±20% Adjustable
0.1 to 1.0 Sun with Attenuator - Spectral Match ClassificationA+ (IEC 60904-9 2020)
- Temporal Instability≤0.5% STI≤2.0% LTI
- Temporal Instability ClassificationA (IEC 60904-9 2020)
- Uniformity≤2 %
- Uniformity ClassificationA (IEC 60904-9 2020)
- Working Distance12.0 ±0.5 in.
- Line Regulation0.01%
- Power RequirementsLamp Housing: 95-264 VAC / 3A (Max) / 47 - 63 Hz
Power Supply: 95-264 VAC / 12A (Max) / 47 - 63 Hz
Resources & Downloads
Manuals
Solaris Series A+ Solar Simulator User Manual(5.2 MB, PDF) Oriel Partial Sun Attenuator User Manual(373.6 kB, PDF)
Literature
Solaris Series A+ Solar Simulator Datasheet(2.3 MB, PDF)
