90 Degree Mounting Bracket, 6 in., SA2 Series Breadboards

90 Degree Optical Breadboard Mounting Brackets

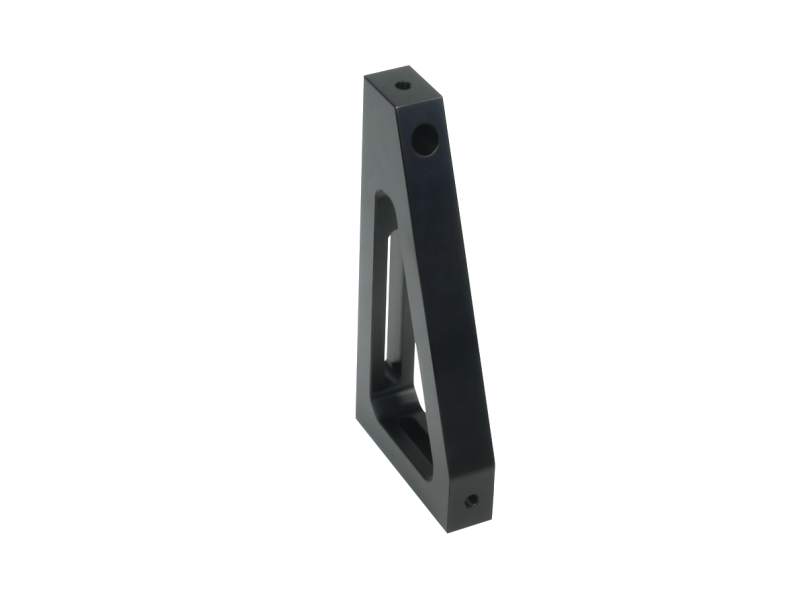

The SA2-BRKT-6 90 Degree Mounting Bracket is ideal for mounting SA2 aluminum breadboard plates vertically. This 6 in. length, flat black, anodized aluminum bracket has tapped 1/4-20 holes. One bracket included.

Specifications

Technical Specs

Width
6 in.
Mounting Holes
1/4-20

Width
6 in.
Mounting Holes
1/4-20

Resources & Downloads

3D Product Models

Download CAD Files

Other

SA2-BRKT-6 RoHS Certificate(275.2 kB, PDF)

2D Product Drawings

SA2-BRKT-6.pdf(157.1 kB, PDF)
