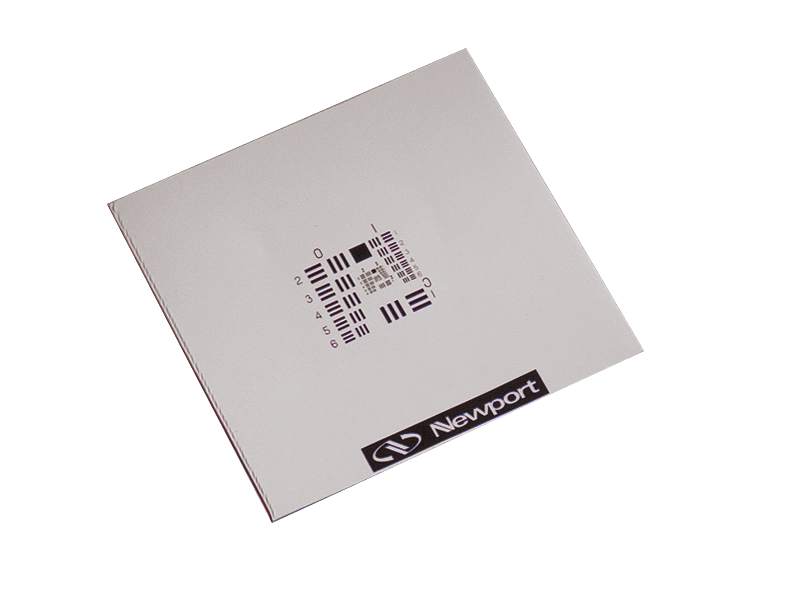

Resolution Test Target, White Paper, Emulsion Positive
Resolution Test Target, White Paper, Emulsion Positive
Model: RES-2
Product Series Overview
Resolution Test TargetsThe RES-2 Resolution Test Targets is emulsion on paper positives and may be used for photo lens testing. The RES-2 is a lesser expensive alternative to our RES-1 glass test target. Please note that for RES-2, the printing of higher resolution groups beyond Group 4 – Element 4 is done on a best effort basis. Because the grain structure of the paper substrate is unable to support the smaller features, the lines pairs become indiscernible at the higher resolutions. For the most stringent applications, please choose RES-1.
Resources & Downloads
Other
RES-2_ROHS2-2021.pdf(278.5 kB, PDF)
