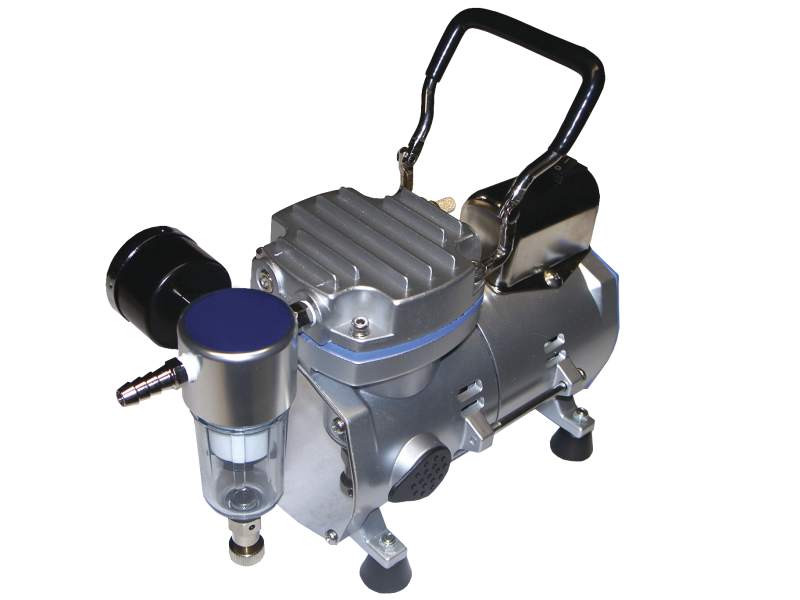

PVIV Vacuum Pump, Oil Free, Cool Air Output, 110 VAC

The PVIV-VAC-Pump is a low power consumption, low maintenance vaccumm pump compatible with Oriel I-V Test Stations and Quantum Efficiency Measurement Systems. It offers rugged corrosion resistant construction while still being compact and lightweight. It is mandatory to integrate this pump with an Oriel mounting chuck, such as the PVIV-TC-VAC, PVIV-VAC-CHUCK, or the vacuum-integrated sample stage on the QuantX systems.120 VAC version.

Specifications

Technical Specs

dB Rating
50.0
Discharge
Oil free
Power Requirements
100-120V, 60 Hz, 0.7 A
Free Air
20.0 lpm (at 0 mm Hg)
Horsepower
1/8 HP
Maximum Vacuum
650.0 mm Hg

Connection
Brass Hose Barb for use with 1/8 inch [3.2 mm] ID tubing
Dimensions
11 inch x 6.5 inch x 6 inch [280 mm x 165 mm x 152 mm]
Weight
7.7 lbs. [3.5 kg]

dB Rating
50.0
Discharge
Oil free
Power Requirements
100-120V, 60 Hz, 0.7 A
Free Air
20.0 lpm (at 0 mm Hg)
Horsepower
1/8 HP
Maximum Vacuum
650.0 mm Hg

Connection
Brass Hose Barb for use with 1/8 inch [3.2 mm] ID tubing
Dimensions
11 inch x 6.5 inch x 6 inch [280 mm x 165 mm x 152 mm]
Weight
7.7 lbs. [3.5 kg]
