Piezo Steering Mirror Mount, 2 mrad x 2 mrad x 16 µm, open-loop

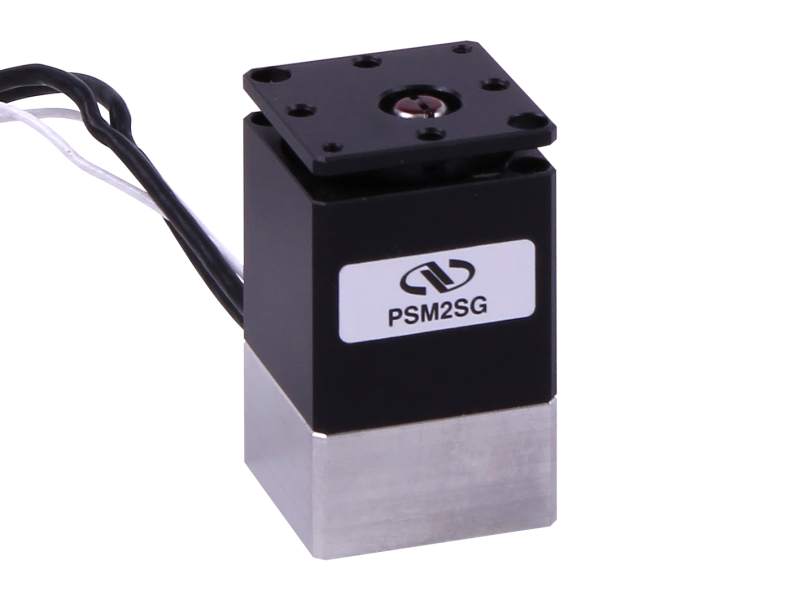

The PSM2 Piezo Steering Mirror Mount provides high-speed, sub-microradian resolution, tip, tilt, and z motion for mirrors, gratings and other optics. Equipped with a direct piezo actuation system without lever arm transmission, the PSM2 is ideally suited for high bandwidth laser beam steering, switching and stabilization, beam scanning, image stabilization, and laser cavity tuning. Fast and reliable motion is supplied by three multi-layer, low-voltage piezo stacks (PZT) in a right triangle configuration. The length of each piezo stack can be controlled individually. Applying a voltage to one stack, results in a tip or tilt. Changing the length of all three stacks simultaneously, results in a linear z-displacement. The tip and tilt are othogonal, with no need for coordinate transformations as required with alternative designs where the piezo stacks are placed in 120 ° intervals. The parallel motion design of the PSM2 has also the advantage of being fully temperature compensated, i.e. changes in the environmental temperature do not affect the tilting angle. PSM2 units are also maintenance-free and are not subject to wear. The PSM2 is available as an open-loop version and is ideal for applications where the position is controlled by an external sensor, e.g. a lateral effect diode, quad cell, photodiode, CCD camera, etc. Use with the 3-axis Nanopositioning Amplifier.
