Sorry, this product is no longer offered for sale. The recommended replacement product is PS-F-1.0.

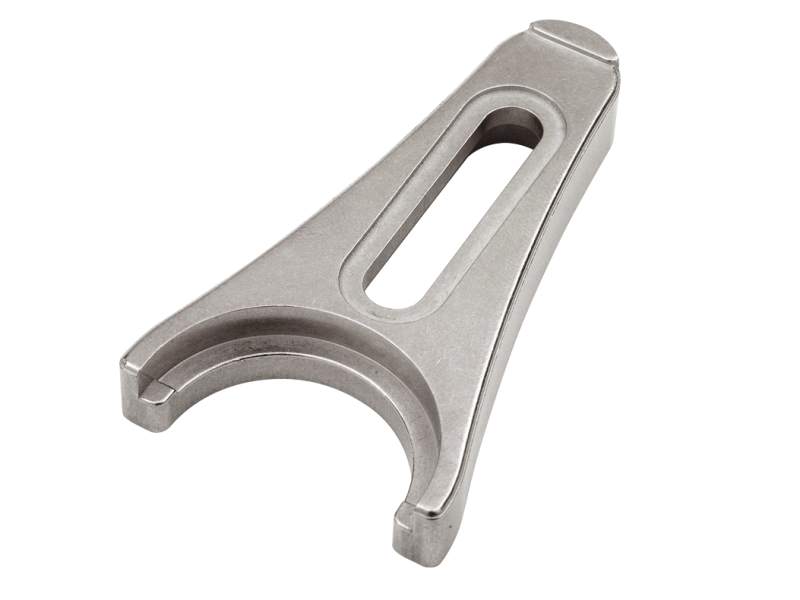

Clamping Fork, 1.0 in. Diameter Pedestals, 1/4-20 (M6) Slot

Model: PS-F

Clearance
Save 20% Off on Limited Stock Clearance Products!
Learn More

Product Series Overview

Pedestal Base Clamping Forks

The PS-F Pedestal Base Clamping Fork secures a 1.0 in. (25.4 mm) diameter optical pedestal or pedestal base optical post holder anywhere on an optical table. This stainless steel clamping fork provides positioning flexibility with a 1.0 in. (25.4 mm) long 1/4-20 (M6) slot for secure mounting of optical pedestals. This product is also available in 10-piece saving pack PS-F-PK.

Specifications

Technical Specs

Type

Pedestal Clamping Fork
Slot Length

25.4 mm
Thread Type

1/4-20 (M6) Slot
Material

Stainless Steel

Pack Quantity

1
Inside Diameter

25.4 mm

Type

Pedestal Clamping Fork
Slot Length

25.4 mm
Thread Type

1/4-20 (M6) Slot
Material

Stainless Steel

Pack Quantity

1
Inside Diameter

25.4 mm

Resources & Downloads

Other

PS-F RoHS Certificate (278.5 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PS-F Drawing (45.4 kB, PDF)
