Pedestal Adaptor, 45 Degree, Threaded, Suprema® Clearance Mount, 8-32
Pedestal Adaptor, 45 Degree, Threaded, Suprema® Clearance Mount, 8-32
Model: PS-45-SUP-C
Product Series Overview

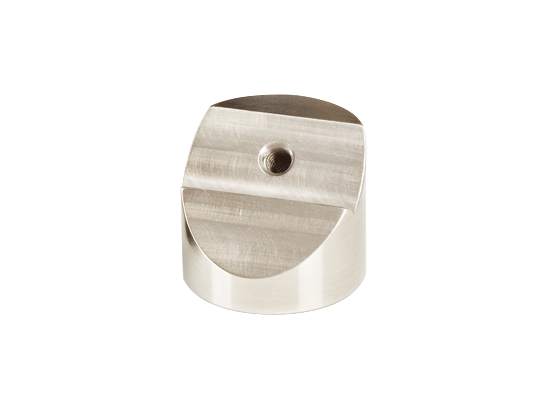

45-Degree Mirror Mount AdaptersThe PS-45-SUP-C Pedestal Adaptor allows Suprema® Series mounts which have a counterbored clear mounting hole, like the SS100-F2H, to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor therefore has a 45-degree mounting hole which has been threaded for 8-32 cap-head screws. The PS-45-SUP-C is designed so that it locates the Suprema mount's mirror both on the post center line and 2.0 in. above the base. The base of the adaptor has an 8-32 thread for mounting to English PS-series posts.
Resources & Downloads
2D Product Drawings
ASSY 45 DEG ULTIMA CATALOGUE(206.5 kB, PDF)
Other
PS-45-SUP-C RoHS Certificate(278.9 kB, PDF) PS-45-SUP-C_RoHS2021.pdf(682.2 kB, PDF)
