Optical Post Clamp, Parallel, 0.5 in Diameter Posts
Optical Post Clamp, Parallel, 0.5 in Diameter Posts
Model: PC-0505
Product Series Overview

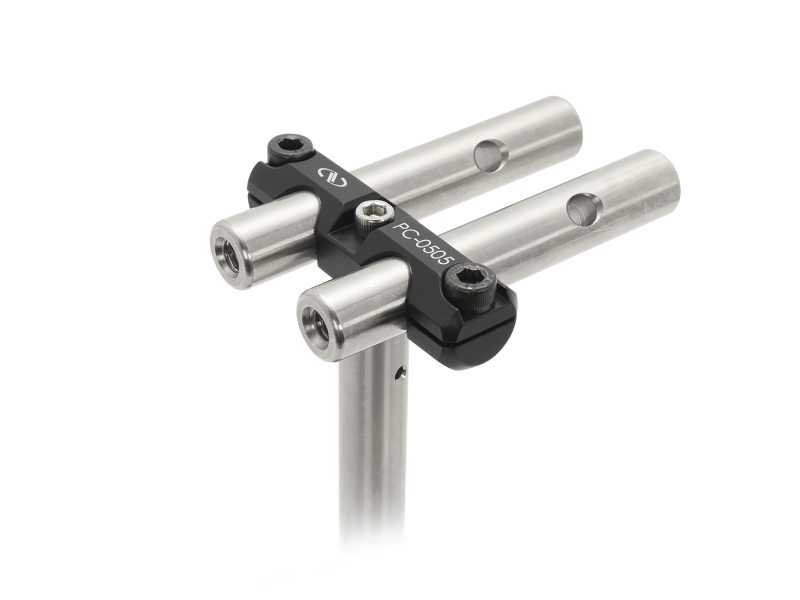

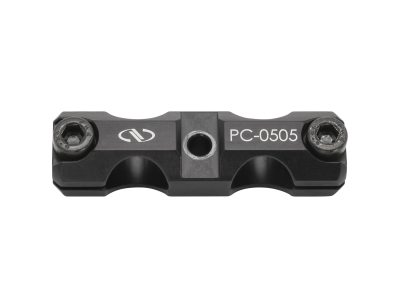

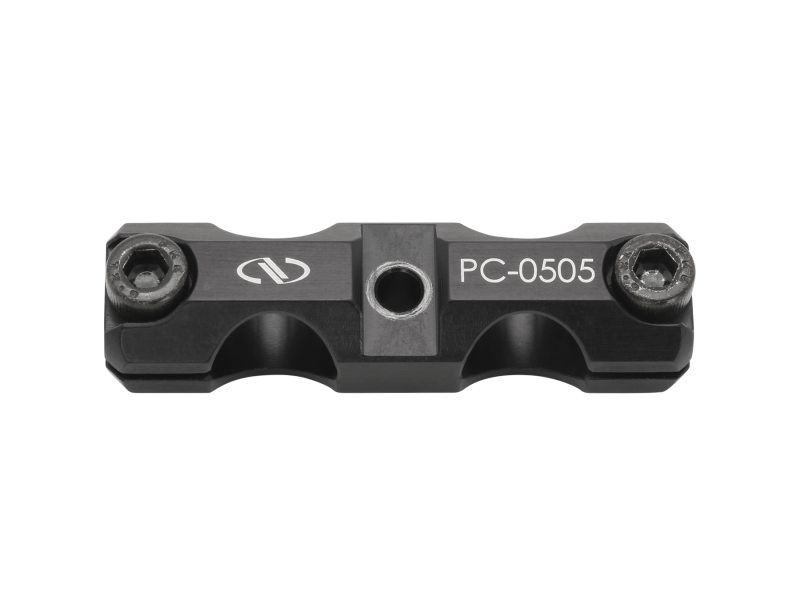

Post-Joining Angle ClampsThe PC-0505 optical post clamp is used to mount two 0.5 inch posts parallel to each other and at the end of another 0.5 inch post. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool. Posts and Universal Hex Knobs sold seperately.
Resources & Downloads
2D Product Drawings
PC-0505.pdf(34.5 kB, PDF)
Other
MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
