Neutral Density Filter, Infrared, 25 mm, 0.3 OD, ±4.00% Tolerance

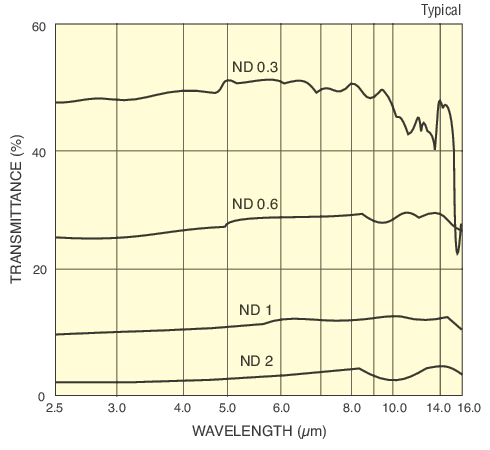

The NDIR10-03 Infrared Neutral Density Filter is a 1 inch (25.0 mm) diameter filter with an optical density of 0.3, and ± 4% transmittance tolerance. Optimized for 2 to 5 μm, this filter attenuates IR radiation from 2 to 14 μm. It is made from a germanium substrate and is coated with a spectrally neutral vacuum deposited metal alloy reflective coating.

Specifications

Technical Specs

Size
Ø25.0 mm
Wavelength Range
2000-5000 nm
Optical Density
0.3
Transmission
50%
Transmission Tolerance
±4%
Material
Germanium
Coating Type
Metallic Neutral Density
Size Tolerance
± 0.2 mm

Thickness
1.0 mm
Thickness Tolerance
± 0.2 mm
Surface Flatness
3-5 λ per inch
Surface Quality
60-40 scratch-dig
Clear Aperture
90 % of central diameter
Parallelism
< 10 arc minute

Size
Ø25.0 mm
Wavelength Range
2000-5000 nm
Optical Density
0.3
Transmission
50%
Transmission Tolerance
±4%
Material
Germanium
Coating Type
Metallic Neutral Density
Size Tolerance
± 0.2 mm

Thickness
1.0 mm
Thickness Tolerance
± 0.2 mm
Surface Flatness
3-5 λ per inch
Surface Quality
60-40 scratch-dig
Clear Aperture
90 % of central diameter
Parallelism
< 10 arc minute

Resources & Downloads

Other

NDIR10-03 RoHS Certificate(709.3 kB, PDF)

2D Product Drawings

NDIR10 Drawing(91.5 kB, PDF)
