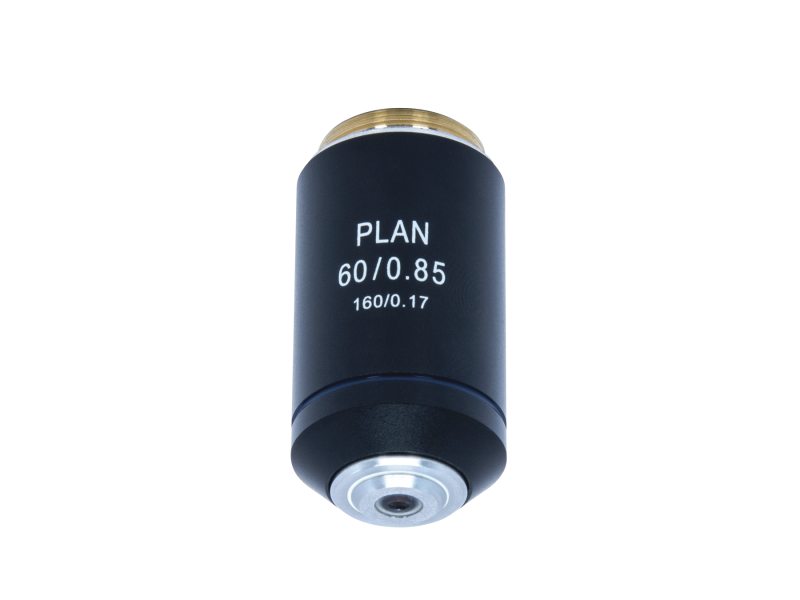

MVC-60X Microscope Objective Lens

Microscope Objective Lens, ValuMax, 60x, 0.85 NA, 400-700 nm

Model: MVC-60X

$164

In Stock

Compare

Add to List

Product Series Overview

Economy Objective Lenses

The MVC-60X microscope objective has a 60x magnification, 0.85 numerical aperture, and 0.48 mm working distance. It uses a standard RMS thread, 0.800-36. The lenses are antireflection coated for the visible spectrum. This MVC-60x objective is suitable for use with standard low power visible laser wavelengths.

Specifications

Technical Specs

Objective Type

ValuMax
Magnification

60x
Numerical Aperture

0.85
Wavelength Range

400-700 nm
Effective Focal Length (EFL)

2.6 mm

Working Distance

0.48 mm
Thread Type

0.800-36 RMS
Tube Length

160 mm
Parfocal Length

45 mm

Objective Type

ValuMax
Magnification

60x
Numerical Aperture

0.85
Wavelength Range

400-700 nm
Effective Focal Length (EFL)

2.6 mm

Working Distance

0.48 mm
Thread Type

0.800-36 RMS
Tube Length

160 mm
Parfocal Length

45 mm
