MVC-10X Microscope Objective Lens

Microscope Objective Lens, ValuMax, 10x, 0.25 NA, 400-700 nm

Model: MVC-10X

$89

In Stock

Compare

Add to List

Product Series Overview

Economy Objective Lenses

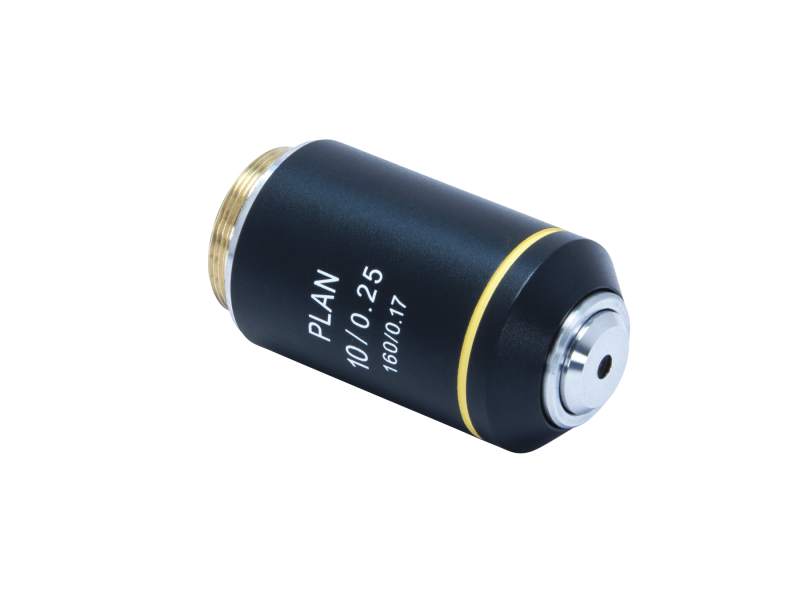

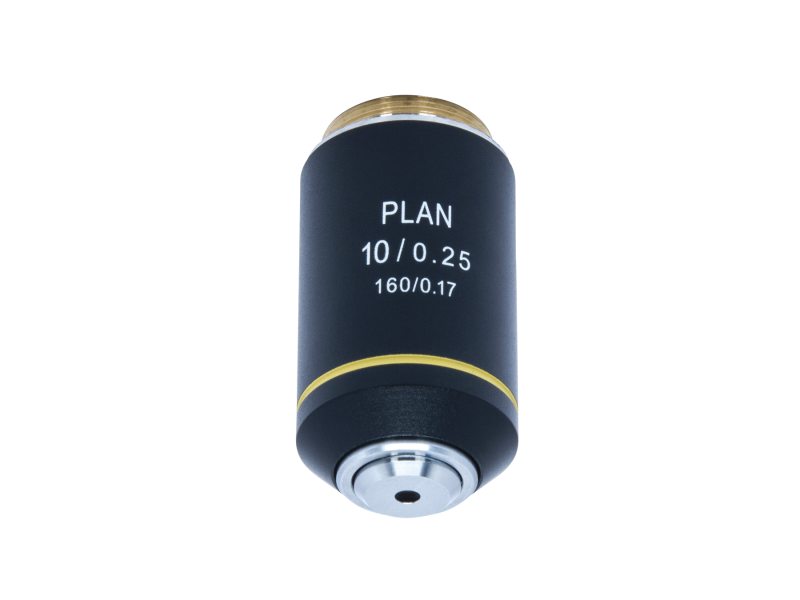

The MVC-10X valumax microscope objective has a 10x magnification, 0.25 numerical aperture, and 8.57 mm working distance. It uses a standard RMS thread, 0.800-36. The lenses are antireflection coated for the visible spectrum. This MVC-10x objective is suitable for use with standard low power visible laser wavelengths.

Specifications

Technical Specs

Objective Type

ValuMax
Magnification

10x
Numerical Aperture

0.25
Wavelength Range

400-700 nm
Effective Focal Length (EFL)

15.3 mm

Working Distance

8.57 mm
Thread Type

0.800-36 RMS
Tube Length

160 mm
Parfocal Length

45 mm

Objective Type

ValuMax
Magnification

10x
Numerical Aperture

0.25
Wavelength Range

400-700 nm
Effective Focal Length (EFL)

15.3 mm

Working Distance

8.57 mm
Thread Type

0.800-36 RMS
Tube Length

160 mm
Parfocal Length

45 mm
