Motorized Linear Stage, Steel, Stepper Motor, 300 mm Travel, M4 and M6
Model: MTN300PP
Product Series Overview

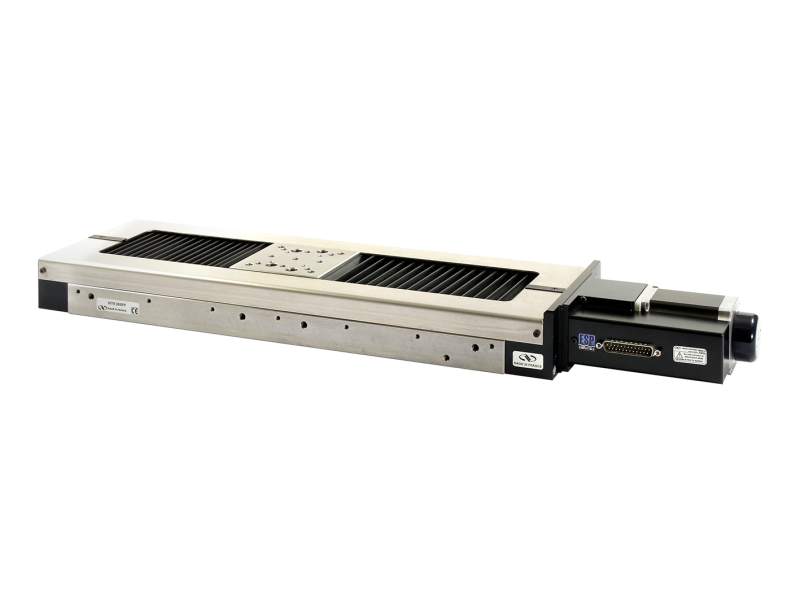

MTN High Load Steel Stepper Motor Linear StagesThe MTN300PP Linear Stage features an all-steel construction and combines high stiffness and thermal stability with a low profile design. This stepper drive version has 300 mm of travel and 0.1 μm Minimum Incremental Motion. MTN stages can bear up to 100 kg with an exceptional high axial load capacity up to 200 N. Features include: opposing single-row bearing surface, a diamond-corrected lead screw, a matched, precision-lapped nut and a non-migrating ball cage design. The nut design includes anti-backlash preloading and a sophisticated decoupling system ensuring little to no stage movement. The non-migrating ball cage design prevents any drift in vertical applications.
All MTN-PP stages are delivered with a MCAB-3 cable, 3-meter cable with a SUB-D25M connector for direct connection to Newport Controllers.
Specifications
- Travel Range300 mm
- Maximum Speed40 mm/s
- Minimum Incremental Motion100 nm
- Centered Load Capacity1000 N
- Axial Load Capacity (+Cx)200 N
- Inverse Axial Load Capacity (-Cx)-21 N
- Accuracy, Typical±2.5 µm
- Accuracy, Guaranteed±3.0 µm
- Uni-directional Repeatability, Typical±0.50 µm
- Uni-directional Repeatability, Guaranteed±0.75 µm
- Bi-directional Repeatability, Typical±1.75 µm
- Bi-directional Repeatability, Guaranteed±2.75 µm
- Pitch, Typical±30 µrad
- Pitch, Guaranteed±60 µrad
- Compliance in Pitch6 µrad/Nm
- Yaw, Typical±30 µrad
- Yaw, Guaranteed±53 µrad
- Compliance in Yaw5 µrad/Nm
- Compliance in Roll4 µrad/Nm
- Drive TypeStepper Motor
- Origin Repeatability±5 µm
- Cable Length3 m
- Vacuum CompatibilityNo
- Thread TypeM4 and M6
- Weight15.3 kg
- MTBF20,000 h (25% load, 10% duty cycle)
- Maximum Power Consumption75 W
- ComplianceRoHS 3, CE
