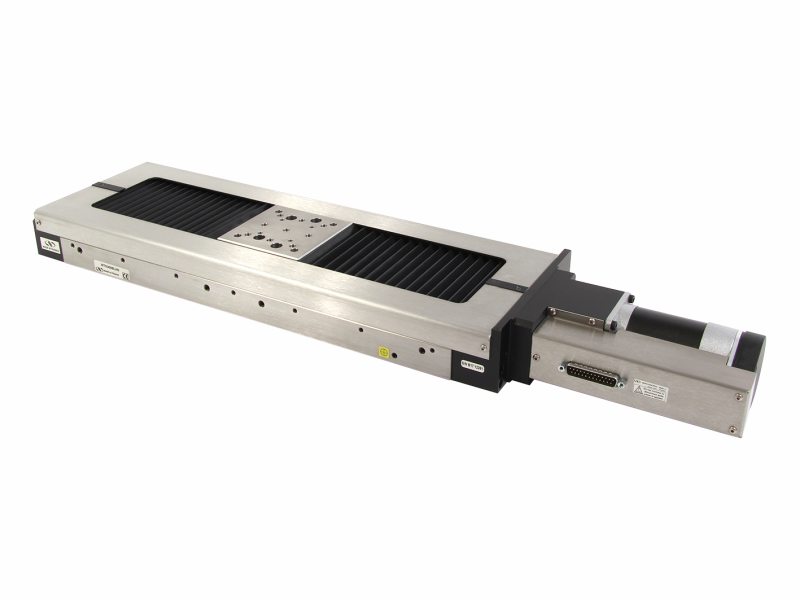

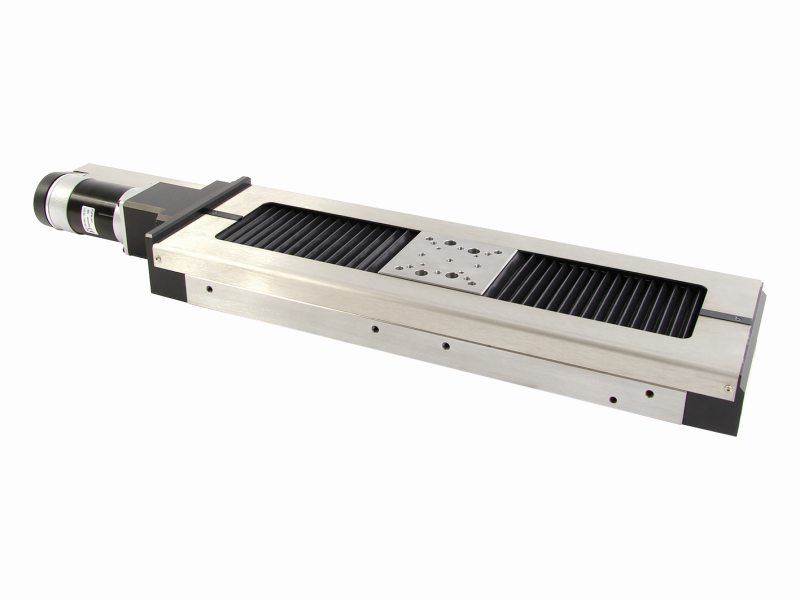

Motorized Linear Stage, Steel, Brushless DC Motor, 300 mm Travel, M4 and M6
Motorized Linear Stage, Steel, Brushless DC Motor, 300 mm Travel, M4 and M6
Model: MTN300BLHS
5 Weeks
Product Series Overview
MTN High Load Steel BLDC Motor Linear StagesThe MTN300BLHS is 300 mm travel reliable, all-steel construction stage with excellent stiffness, load capacity and thermal stability. It can bear up to 100 kg centered load, when mounted horizontally and 200 N axial load capacity in both directions. The MTN300BLHS is equipped with linear guides for smooth and accurate motion trajectory ,brushless motor for 250mm/sec max speed and non-migrating ball cage design for no drift. Ideal for applications that require moving heavy loads at high-speeds with very fine repeatability.
All MTN-BLHS stages are delivered with a MCAB-3-B cable, 3-meter cable with a SUB-D25M connector for direct connection to Newport Controllers.
Specifications
- Travel Range300 mm
- Maximum Speed250 mm/s
- Minimum Incremental Motion300 nm
- Centered Load Capacity1000 N
- Axial Load Capacity (+Cx)200 N
- Inverse Axial Load Capacity (-Cx)200 N
- Holding Force at Power Off100 N
- Accuracy, Typical±2.0 µm
- Accuracy, Guaranteed±4.0 µm
- Uni-directional Repeatability, Typical±0.2 µm
- Uni-directional Repeatability, Guaranteed±0.3 µm
- Bi-directional Repeatability, Typical±0.3 µm
- Bi-directional Repeatability, Guaranteed±0.5 µm
- Pitch, Typical±30 µrad
- Pitch, Guaranteed±60 µrad
- Compliance in Pitch6 µrad/Nm
- Yaw, Typical±30 µrad
- Yaw, Guaranteed±53 µrad
- Compliance in Yaw5 µrad/Nm
- Compliance in Roll4 µrad/Nm
- Drive TypeBrushless DC Motor
- Cable Length3 m
- Vacuum CompatibilityNo
- Thread TypeM4 and M6
- Weight15.4 kg
- MTBF20,000 h (25% load, 30% duty cycle)
- Maximum Power Consumption170 W
Resources & Downloads
3D Product Models
2D Product Drawings
MTN300BLHS.pdf(465.6 kB, PDF)
Literature
MTN-BLHS Data Sheet(1.5 MB, PDF)
Manuals
MTN-BLHS Linear Stages User's Manual(1.2 MB, PDF)
Related Products
Compatible Controllers
Based on axis required, choose a specific XPS-D or XPS-RLD controller to pair with the stage. Along with the controller, a driver module is required.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver1XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver2XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver |
Notes:
- Requires XPS-DRV11BL driver module
- Requires XPS-DRV11BL driver module
