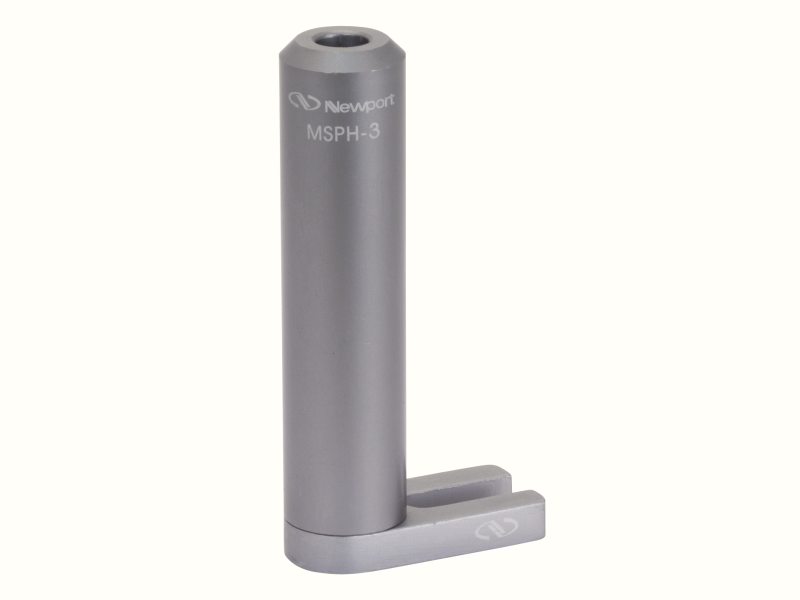

Optical Post Holder, 3.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
Optical Post Holder, 3.25 in. Height, 7.9 mm Posts, 1/4-20 Slotted Base
Model: MSPH-3
Product Series Overview
Miniature Slotted Base Optical Post HoldersThe MSPH-3 is a low-cost, slotted-base post holder for miniature 5/16 in. diameter MSP-Series posts. The 1/4-20 (M6) slotted base allows this post holder to be used on standard optical tables right along side standard-sized post holders and pedestals. MSPH post holders facilitate the creation of more compact setups through the use of smaller sized optical mounts.
Resources & Downloads
2D Product Drawings
MSPH(158.5 kB, PDF)
Other
MSPH-3 RoHS Certificate(280 kB, PDF) MSPH-3_RoHS2021.pdf(689.4 kB, PDF)
