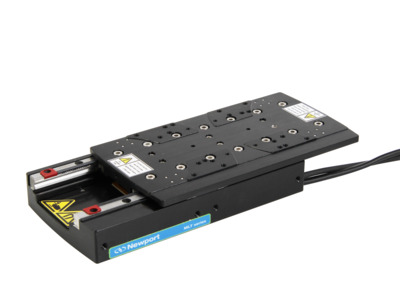

Motorized Linear Stage, 100 mm Travel, Linear Motor, 70 N Load, M4

  • Travel Range
    100 mm
  • Maximum Speed
    500 mm/s
  • Minimum Incremental Motion
    5 nm
  • Maximum Acceleration
    0.75 g
  • Maximum Continuous Force
    3 N
  • Centered Load Capacity
    70 N
  • Accuracy, Guaranteed
    ±1.25 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.15 µm
  • Flatness, Guaranteed
    ±3 µm
  • Straightness, Guaranteed
    ±3 µm
  • Pitch, Guaranteed
    ±75 µrad
  • Yaw, Guaranteed
    ±75 µrad
  • Drive Type
    Linear Motor
  • Cable Length
    2.9 m
  • Thread Type
    M4
  • Weight
    2.1 kg
  • MTBF
    20,000 h (100% load, 60% duty cycle)
  • Compliance
    RoHS 3, CE
