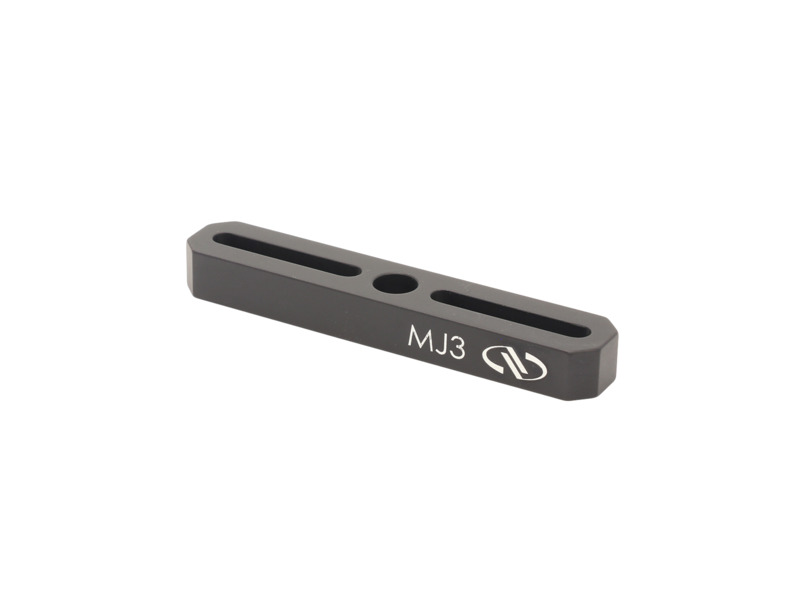

Centered Mounting Post Joist, 10-70 mm

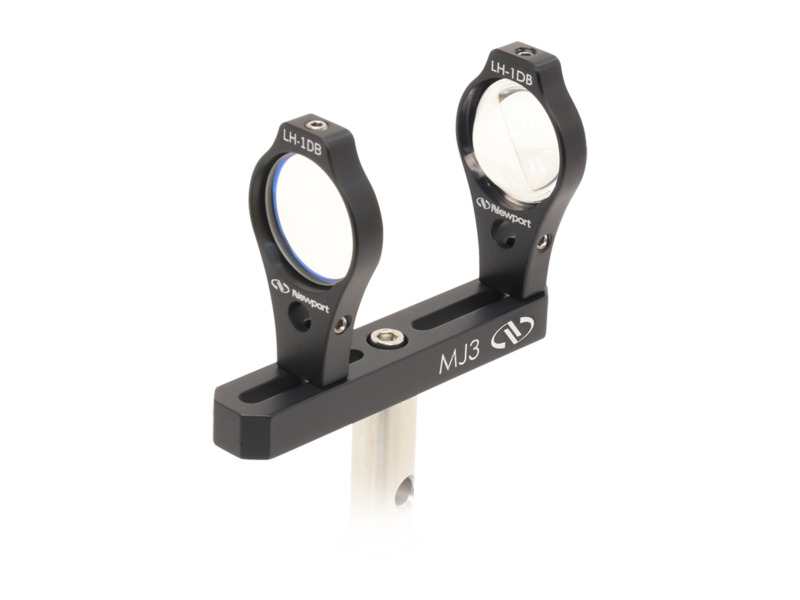

The MJ3 includes a center through hole for post mounting plus two colinear 25.7 mm (1.01”) adjustment slots on either side of the post. Optics in both slots can be adjusted for separation of approximately 10-70 mm (~0.40-2.75”).
Resources & Downloads
2D Product Drawings
MJ2 MJ3 DWG(74.6 kB, PDF)
Other
MJ_RoHS2021.pdf(282.7 kB, PDF)
