Industrial Optical Mount, Flexure, 1.0 in., 2 Allen, LaserClean

Low Outgassing and LaserClean Mirror Mounts

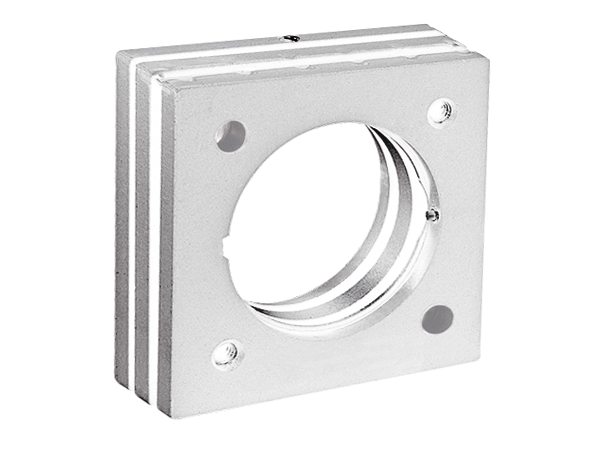

The MFM-100-LC Compact Stainless Steel Flexure Mirror Mount is designed for set and forget OEM applications. Welded construction, stiff flexure pivots, and precision adjustment screws provide excellent mechanical stability. 80-pitch adjustment screws yield arc sec-level sensitivity over a ±2.5° range. Adjustment is easy using an Allen wrench or our optional BD-05 ball driver. No bulky knobs risk accidental misalignment in the field. 1 inch (25.4 mm) diameter mirrors can mount in either face, so adjustments can be made from the front or the back of the mount.

Specifications

Technical Specs

Mechanism
Flexure
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
5 arc sec
Angular Range
±2.5°

Optic Loading
Front or Rear
Material
Stainless Steel
Drive Type
Allen-Key, non-locking
Thread Type
4-40
Optical Axis Height
19.1 mm
Special Features
Shock Resistant

Mechanism
Flexure
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
5 arc sec
Angular Range
±2.5°

Optic Loading
Front or Rear
Material
Stainless Steel
Drive Type
Allen-Key, non-locking
Thread Type
4-40
Optical Axis Height
19.1 mm
Special Features
Shock Resistant

Resources & Downloads

2D Product Drawings

MFM-075-S(104.5 kB, PDF)

Other

MFM-100-LC RoHS Certificate(278.9 kB, PDF)
MFM-100-LC_RoHS2021.pdf(683.1 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

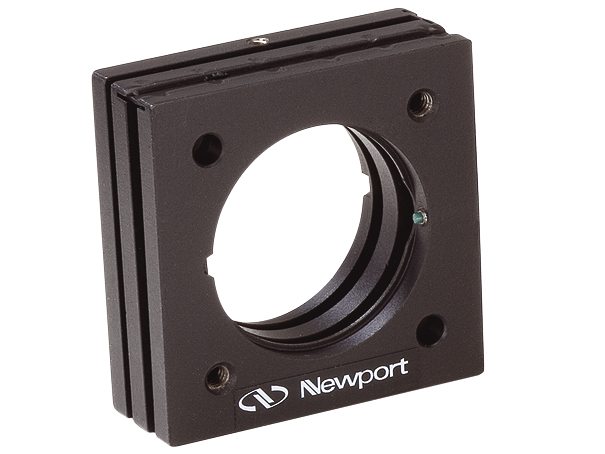

		MFM-100Industrial Optical Mount, Flexure, 1.0 in., 2 Allen-Key Adjustment	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$164
