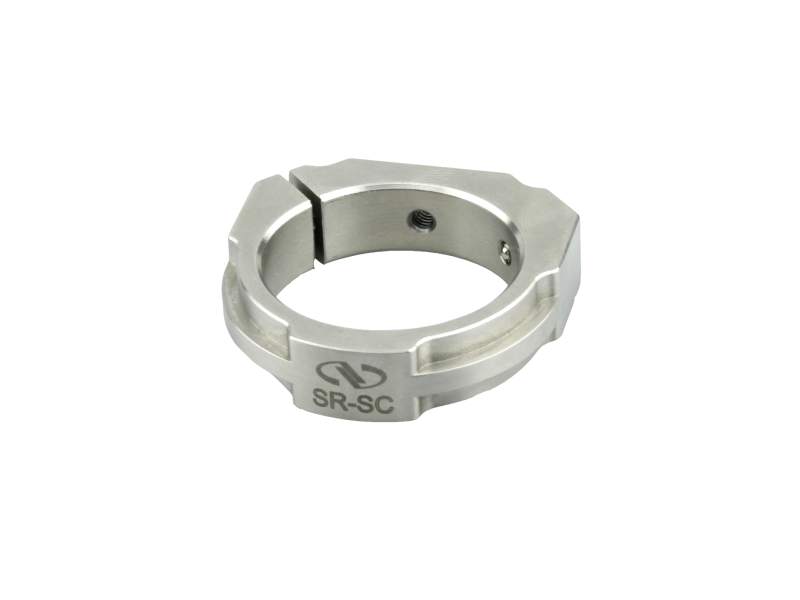

Post Clamp, Sliding, 38.1 mm Diameter Posts and Pillars, M4 Thread
Post Clamp, Sliding, 38.1 mm Diameter Posts and Pillars, M4 Thread
Model: M-SR-SC
Product Series Overview
1.5 in. Post Mirror Mount AdaptersThe M-SR-SC Sliding Clamp can be used to secure an optical mount at any position and angle along the length of an SR Rod. When used with the V-grooved M-SP-4P Rod, its spring-loaded ball detent allows it to ride linearly along the M-SR-4P's length preventing unintentional rotation during height adjustment.
Resources & Downloads
2D Product Drawings
SR-SC-307(100.9 kB, PDF)
Other
M-SR-SC RoHS Certificate(278 kB, PDF) M-SR-SC_RoHS2021.pdf(680.1 kB, PDF)
