Optical Breadboard Plate, Solid Aluminum, 300 x 600 mm, M6, Double Density
Optical Breadboard Plate, Solid Aluminum, 300 x 600 mm, M6, Double Density
Model: M-SA2-12-D
Product Series Overview

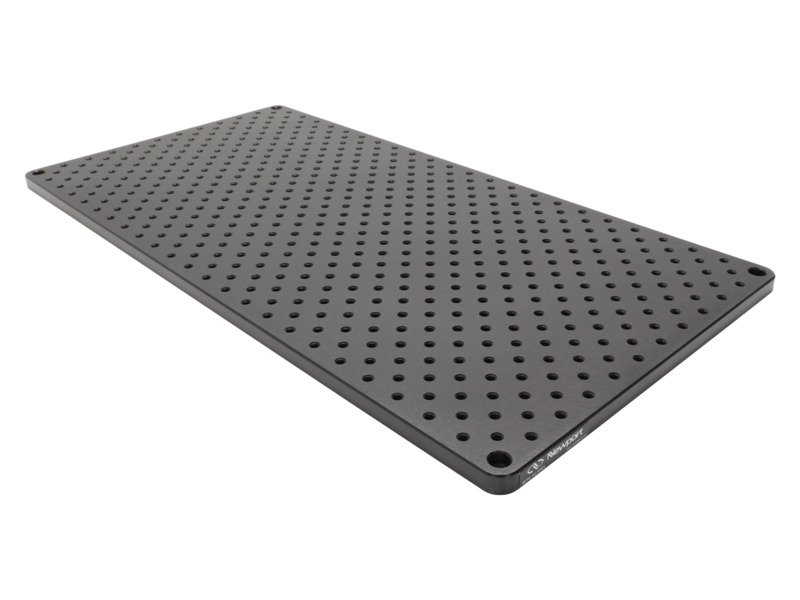

Double Density Solid Aluminum Breadboard PlatesThe M-SA2-12-D Solid Aluminum Optical Breadboard is a 300 x 600 mm by 12.7 mm thick solid aluminum plate perfect for all kinds of non-critical applications where higher performance and higher priced breadboards are simply not necessary. It features double density M6 hole pattern to accommodate the ever growing need to mount components more closely together to save space for compact applications.
Resources & Downloads
2D Product Drawings
Double Density SA2 Drawing(432.1 kB, PDF)
Other
M-SA2-12-D RoHS Certificate(275.2 kB, PDF)
