Pedestal Clip Set, Two Clips, Two M6 Screws
Pedestal Clip Set, Two Clips, Two M6 Screws
Model: M-PS-C-SET
Product Series Overview
Pedestal Base Clamping ForksThe stainless steel M-PS-C-SET Pedestal Base Clipping bridles secure a 25.4 mm diameter optical pedestal or pedestal base optical post holder on an optical table. These pedestal clips decrease the amount of table real estate compared to a standard clamping fork. In addition, these clips create a symmetrical clamping force around the center of the post. This even force prevents one-sided post deflections when tightening a post fork.
Included in this set are two pedestal clips, two M6 screws, and two washers.
Included in this set are two pedestal clips, two M6 screws, and two washers.
Resources & Downloads
2D Product Drawings
PS-C(109.7 kB, PDF)
Other
M-PS-C-SET_RoHS2021.pdf(681.4 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

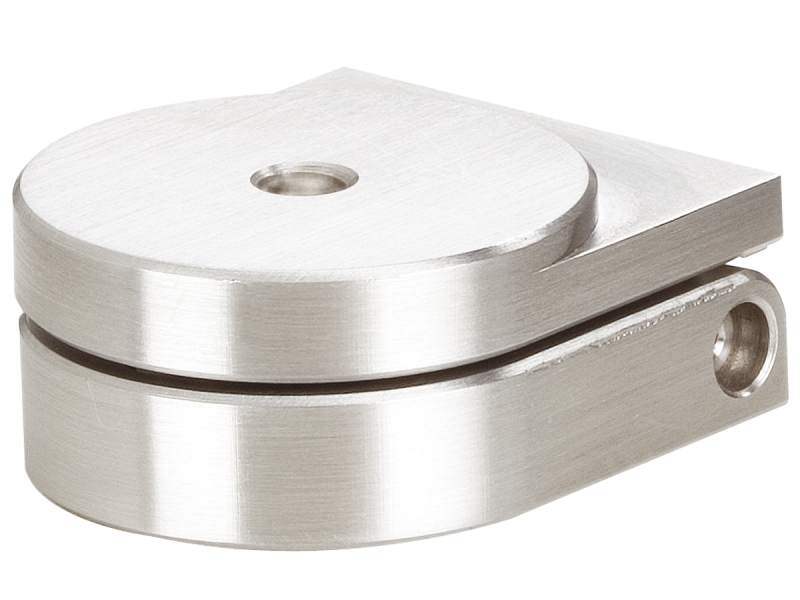

 | PS-KF-CKinematic Flip Base, Counterbored Thru-Hole | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PS-KFKinematic Flip Base, Threaded 8-32 Mounting | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SS-1-BThread Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

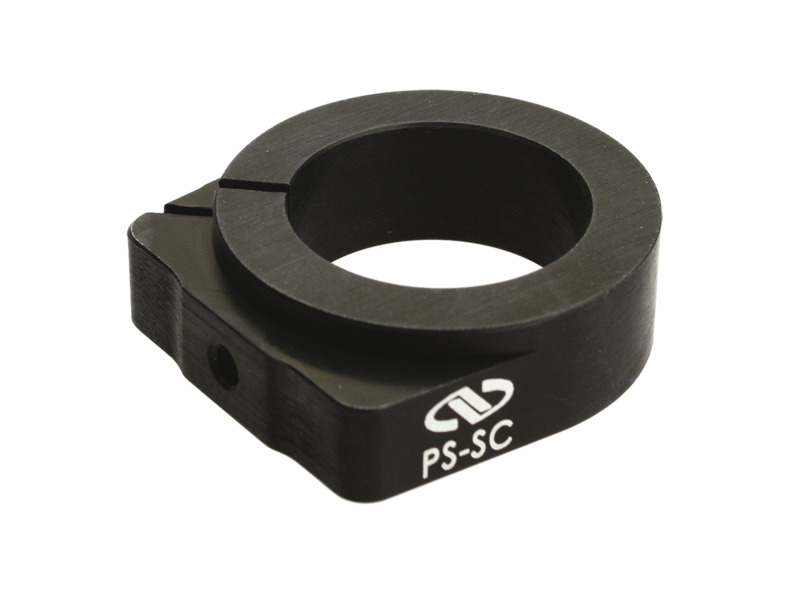

 | PS-SCPost Clamp, Sliding, 1.0 in. Diameter Posts, 8-32 Thread | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
