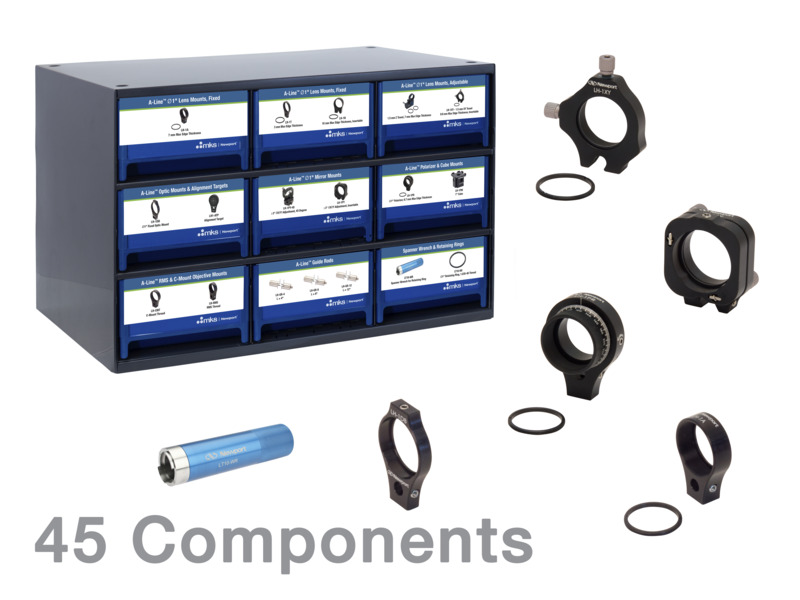

New A-LINE Lens Alignment Kit, 25.4 mm, 45 Components, Metric Threads

The M-OMK31 A-LINE Lens Alignment Kit provides a cost-effective collection of 45 of Newport’s latest 25.4 mm optics mounts, tools, and mounting accessories with imperial threads.  This kit offers a variety of fixed lens mounts, kinematic mounts, mirror mounts and mounting equipment allowing a wide range of setup options and easy installation. The kit also comes with a pre-labeled 9 drawer cabinet for easy setup and ordering of additional parts if necessary for your laboratory.

Kit Contents

	OMK31	M-OMK31	Description	Quantity
	LH-1A	M-LH-1A	Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 (M4) Thread, A-LINE	10
	LH-1T	M-LH-1T	Thin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 (M4), A-LINE	2
	LH-1DB	M-LH-1DB	Mirror Mount, Fixed, 25.4 mm Diameter, 8-32 (M4) Thread, A-LINE	2
	LH-1N	LH-1N	Lens Mount, Insertable, 25.4 mm Diameter, A-LINE	1
	LH-1XY	LH-1XY	XY Lens Mount, Insertable, 25.4 mm, A-LINE	2
	LH-1PY	M-LH-1PY	Polarizer Rotation Mount, 25.4 mm, 8-32 (M4) Thread, A-LINE	1
	LH-1PR	M-LH-1PR	Polarizer Rotation Mount, 25.4 mm, 8-32 (M4) Thread, A-LINE	2
	LH-1PM	LH-1PM	Fixed Cube Mount, 1.0 in. (25.4 mm), 8-32 Thread, A-LINE	2
	LH-1PY-45	LH-1PY-45	45 Degree Mirror Mount, Adjustable, 25.4 mm, A-LINE	1
	LH-RMS	M-LH-RMS	Microscope Objective Mount, Fixed, A-LINE, 0.800-36 Thread, 8-32 (M4)	2
	LH-CMT	M-LH-CMT	Fixed Lens Mount, C-Mount Camera Lens Thread (1.00-32), 8-32 (M4) Thread, A-LINE	1
	LH-1TZ-A	LH-1TZ-A	Fine Focusing Lens Mount, 1.0 in., Screw Drive, 8-32 and M4, A-LINE	1
	LT10-WR	LT10-WR	Spanner Wrench, 1 inch LT Series Lens Tubes	1
	LT10-RR	LT10-RR	Retaining Ring, 22.9 mm ID, 1.035-40 Thread	5
	LH1-ATP	M-LH1-ATP	Alignment Target, Post Mount, 8-32, A-Line	2
	LH-GR-4	LH-GR-4	Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE	4
	LH-GR-8	LH-GR-8	Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE	4
	LH-GR-10	LH-GR-10	Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE	2
